“This new millennium sucks! It’s exactly the same as the old millennium! You know why? No flying cars!” – Lewis Black

Of all the far-out visions for the future provided us by popular culture (indeed, by this very magazine above almost all else), perhaps none is so conspicuously absent today as the flying car. Other sci-fi fantasies – the invisibility cloak, laser weapons, universal translators, 3-D printers – exist to some degree, if only on a lab bench somewhere. But the flying car, once considered the next logical step in personal transit, simply never took flight.

But now, for the first time since the age of Henry Ford, the flying car has a serious patron. And it’s not some eccentric millionaire or overzealous garage inventor. It’s the United States Department of Defense.

Back in April, DARPA put out a call for proposals seeking a vehicle with some thought-provoking features; a capacity of one to four passengers, enough sturdiness to go off-road, and – most intriguingly – full flight capabilities with vertical takeoff and landing (VTOL). Called Transformer, the program sought “terrain-independent mobility,” not just so soldiers could get around physical obstructions, but also to help them avoid ambushes and that most pervasive threat in America’s current military engagements: IEDs.

In essence, DARPA has asked for a flying Humvee, and they want it by 2015.

For a look back, see our gallery of flying cars throughout history from the pages of PopSci here

Some DARPA initiatives die quiet deaths. Others become NASA or the internet. Transformer lay quiet for a few months, but then the proposals started coming in, complete with futuristic but feasible-looking concept drawings: Humvees fitted with collapsible helicopter rotors or huge ducted fans or folding wings (or a combination of the above) sweeping over rugged terrain or sloping third-world cities, gunners hanging out the side door. You could almost hear Ride of the Valkyries playing over some unseen loudspeaker.

But these designs were different from the fanciful schematics that spring up in garages and on Web sites from time to time. Not in spirit or mechanics necessarily, but in the fact that they sought a concrete prize beyond the satisfaction of flight itself: millions of potential defense dollars to develop the prototypes, and perhaps many millions more in contracts should they succeed.

Lockheed Martin's Ducted Fan Powered Transformer Concept

Lockheed Martin’s Ducted Fan Powered Transformer Concept

Last month, Maryland-based AAI Corp. landed a $3.05 million DARPA grant to develop its hybrid wing/rotor Transformer vehicle (above). Then Lockheed Martin scored a similar study contract to develop its own alternative Transformer design (right), employing a huge ducted fan on each wing to provide lift and thrust. Shortly thereafter, jet engine maker Pratt & Whitney Rocketdyne received $1 million to develop a lightweight diesel engine to power the vehicle. The three companies have already put their heads together on the project. With economic incentives and a strategic imperative in mind, it appears the flying car is finally getting off the ground.

There are various explanations as to why the flying car has not already become a reality, but most plainly it seems we ran out of incentive (if not imagination). In the heady days of the 1920s, the flying car was a foregone conclusion: “Today events in the realm of aviation are tumbling along at such a pace that we can almost imagine ourselves spending next summer’s vacation touring the air roads.” These words, typeset in the November 1926 issue of Popular Science, detailed great strides in the machinery of flight that were bringing the technology down to the common man. The piece included a black and white depiction of Henry Ford next to his compact hybrid car-plane, the “Ford Flivver.” According to Ford, his machine would “be brought within the reach of every man’s pocketbook.” He might as well have been talking about the Model T.

But it wasn’t to be. By the time WWII ended, the endless optimism of the 1920s had been thoroughly blunted, first by the Great Depression then by the geopolitical struggles of the 1940s. Upon the post-war return to normality, a different kind of optimism reigned, tempered by rising Cold War anxieties. A military-industrial complex hungry for the best aeronautical engineers also fostered a new view of the sky not as a place to be cruised by the common man, but as an important strategic territory to be dominated by fearsome long-range bombers and rockets destined for space.

Besides, fuel was cheap, asphalt was abundant, and with a massive new interstate highway system connecting all the places people wanted to go, the automobile became king. A series of hybrid car-plane designs – most of them were really just planes with detachable wings – popped up during the ’40s and ’50s, but without a clearly defined need for personal flying vehicles the concept was relegated to the purview of science fiction writers and dreamers. By mid-century, personal flying machines went from feasible to fantastical.

But the idea, though pushed to the fringes of invention, never died. Fictional futurism ranging from Judge Dredd to the Jetsons has relied on flying cars to set the scene. The opening sequence to Futurama takes viewers on a first-person drive through the congested “skyways” of a crowded 31st-century metropolis.

Even Back to the Future Part II, the pop culture authority on future predictions, teased us with flying car technology – as well as hoverboards, self-lacing sneakers, and several other predictive technologies that have since come to exist in some form – and that was set in the year 2015. There’s even a Facebook group titled “So it’s 2010, where is my flying car bitch!”

The allure of personal flight isn’t completely lost on regulatory agencies and aviation visionaries either. The FAA’s relatively new Light Sport Aircraft designation allows pilots with relatively few flight training hours to pilot small aircraft under favorable conditions. The LSA designation – intentionally or not – creates a legal space for pilots with minimal training to operate light, non-complex aircraft at low altitudes, as well as a commercial niche for aircraft like the Terrafugia Transition, a four-wheeled folding-wing aircraft that is also drivable on city streets and fits neatly in a home garage.

But the Transition is a “roadable aircraft,” not a flying car. DARPA wants a dual-mode vehicle that requires no runway or special infrastructure considerations. Though not stipulated specifically, ideally the Transformer would automate takeoff and landing so the operating soldier doesn’t also need to be a pilot. Transformer must be efficient, achieving a range of 250 nautical miles on a single tank of fuel. And Transformer has a primary objective: to save soldiers’ lives. That’s not just a noble goal; it creates a high standard for safety as well.

DARPA is willing to open its purse for such a vehicle – up to $54 million over the life of the program – and that’s what makes this attempt at the flying car so exciting. The Transformer Program removes three of the biggest obstacles that have plagued the flying car from its very conception, providing an immediate financial incentive to innovate, clearly defining a need, and seeking technologies that are within reach.

Overcoming the first two obstacles is easy enough for DARPA: the Pentagon provides the funding, and the need to protect troops from IEDs is lost on no one who follows the news out of Iraq and Afghanistan. But technology will be the real differentiator between Ford’s Flying Flivver – which never saw production after a fatal crash during test flights – and the flying cars of the future.

In the crowded skyways of the future, safety would clearly be the paramount concern – no one would want the same number of cars on the road today zooming haphazardly through the skies above metropolitan areas. But automated on-board systems can simplify takeoff and landing for operators, and larger networked air traffic control systems could conceivably automate flight itself, moving vehicles around crowded urban skies while keeping them on safe trajectories. We’re already hard at work on cars that safely navigate themselves – DARPA is a pioneer in this field, and Google recently revealed it has a fleet of self-driving cars – so it’s not a huge leap to networked vehicles that navigate the skies in similar fashion. And should the weather turn bad, cities could ground traffic – we are talking about flying cars here after all.

The progress of the Transformer program points optimistically toward an increasingly aerial future for the common driver, as defense technology tends to roll downhill. If DARPA succeeds in providing the military with a flight-capable automobile, it’s difficult to imagine a scenario where that technology isn’t commercialized at some point. It certainly won’t happen overnight (or in the next decade for that matter), but with the technology sitting right in front of us we would be foolish to keep our rubber restricted to the road.

Besides, we called it back in 1926: “How soon we shall fly our own machines depends, experts agree, on how quickly foolproof machines can capture public confidence. Once that confidence has been gained and public demand created, quantity production and lower prices will be possible. The wonderful history of the automobile will be repeated in the air.”

Eddie Rickenbacker's Flying Autos: July 1924

Eddie Rickenbacker’s Flying Autos: July 1924

We aren’t the only ones who are impatient to graduate from the streets to the skies. Celebrated pilot Eddie Rickenbacker predicted that people would zip around in flying cars by the year 1944. The machine would be equipped with collapsible wings spanning 25 feet, a front-end propeller, and even pontoons for water travel. The “flying roadster’s” body would be more streamlined to reduce weight, and its engine would be light, small, and supercharged. To reduce accidents and air traffic, cities would construct giant landing fields out of building rooftops connected by bridges. After landing, the flying cars would take a special elevator down to street level, where they would drive around like regular land-based vehicles. Read the full story in “Flying Autos in 20 Years”
Curtiss Autoplane: July 1927

Curtiss Autoplane: July 1927

Renowned aviator Glenn Curtiss, rival of the Wright Brothers and a founder of the U.S. aircraft industry, could also be called the father of flying cars. In 1917, he unveiled the Curtiss Autoplane, which is widely considered the first of its kind. The aluminum autoplane had a Model T Ford-like body, four wheels, a 40-feet wingspan, and a giant 4-blade propeller mounted in the back. Although the autoplane only managed a few hops, people lauded Curtiss’ “aerial limousine” as the forerunner for personal vehicles to come. Read the full story in “Glenn Curtiss Sees a Vision of Aviation’s Future”
Flying Tanks: July 1932

Flying Tanks: July 1932

In response to the horrors of trench warfare, inventors raced to develop flying tanks that could land on the battlefield and be ready for immediate combat. American engineer Walter J. Christie envisioned a four-ton armored vehicle equipped with a 1,000-horsepower motor, a propeller, and detachable wings. Each tank would be commanded by two men. Upon landing, the driver would pull a single lever, releasing the wings, and advance into battle. Meanwhile, the Soviet Air Force designed their own winged tanks, like the Antonov A-40, which was essentially a T-60 light tank with large biplane wings and a twin tail attached. Despite the efforts of engineers, flying tanks never really caught on, so further efforts were scrapped and largely forgotten. Read the full story in “Flying Tanks….War’s Deadliest Weapon”

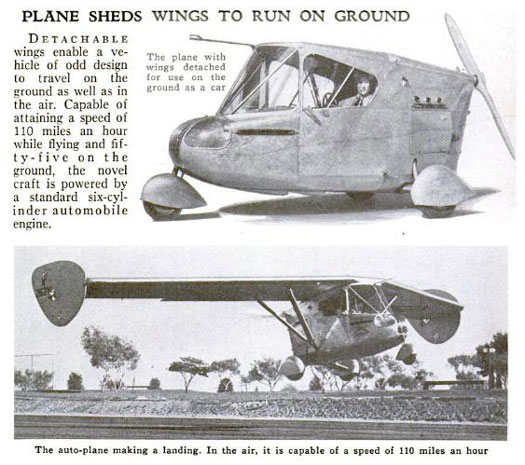

Waterman Arrowplane: May 1937

Waterman Arrowplane: May 1937

Based on the picture and description, we’ve concluded that this unnamed vehicle is Waldo Waterman’s Arrowplane, a three-wheeled roadable monoplane inspired by Glenn Curtiss’ autoplane. The Arrowplane, also known as the Arrowbile, had an engine and propeller in the back. Two decades later, Waterman unveiled the Aerobile as an upgrade to the Arrowplane. Five Aerobiles were built, and two flights from Santa Monica to Ohio completed, but nobody bought them. Eventually, one of the Aerobiles ended up on display at the Smithsonian, and today, the vehicle is known as one of Time Magazine’s 50 Worst Cars of All Time. Read the full story in “Plane Sheds Wings to Run on Ground”

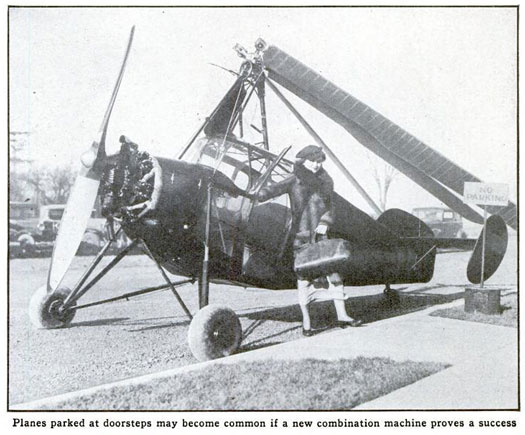

Windmill Autoplane: June 1935

Windmill Autoplane: June 1935

While there isn’t much written about this machine, its autogyro-like design helps it stand out from its competitors. In flight, the machine would function like any other autogyro. Upon landing, however, its blades would fold downward, allowing the machine to drive along the highway. Read the full story in “New Craft Combines Auto and Plane”

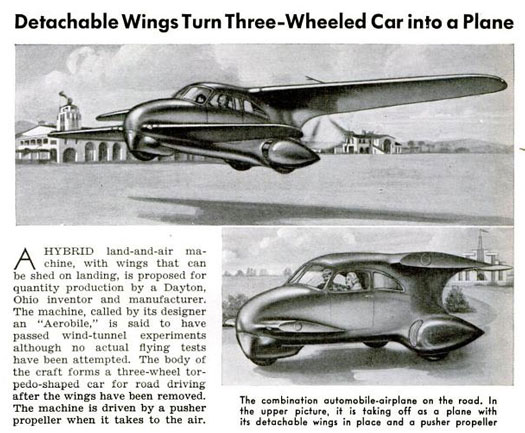

Aerobile: December 1940

Aerobile: December 1940

This torpedo-shaped vehicle, called the “Aerobile,” was manufactured by an unnamed inventor from Dayton, Ohio. In theory, a pusher propeller would drive the plane during flight, and we say “in theory” because no one actually attempted to fly this thing. At best, the Aerobile was one of the more aesthetically pleasing prototypes released during the mid-20th century. Read the full story in “Detachable Wings Turn Three-Wheeled Car into a Plane”
Post-War Family Car: November 1942

Post-War Family Car: November 1942

Although the war was far from over in 1942, we couldn’t help imagining how awesome life would be after the Allies’ inevitable victory. Discoveries made during the period of wartime research would revolutionize the transportation industries. Soldiers arriving home from the war would likely prefer private air travel over driving. The demand would foster a relationship between the automobile and aviation industries, which would then cooperate to make light planes as ubiquitous as family cars. Flight strips would run parallel to roads, while gas stations would be redesigned to accommodate hangar spaces. The picture at left, called the Aerial Family Car, may resemble a Ford Flivver plane more than a flying auto, but its high-lift flaps would allow for steep takeoffs from suburban front yards. Read the full story in “War’s End Will Bring a Better Life”
The Plane You'll Fly After the War: March 1945

The Plane You’ll Fly After the War: March 1945

In the fall of 1944, we ran a contest asking readers to submit designs for their ideal postwar private planes. Much to our surprise, analysis of the 3,345 entries revealed that only 10 percent of people surveyed wanted roadable aircraft. The vast majority of people preferred low-wing monoplanes or planes with pusher props, the reason being that they favored safety over novelty. The tailless design pictured left was submitted by Ray Ring, of Framingham, Mass. Only about 14 percent of the people who designed flying cars preferred foldable wings over detachable ones. Read the full story in “These are the Planes You’ll Fly After the War”
ConvAirCar: April 1946

ConvAirCar: April 1946

After the War, Convair commissioned a flying car suitable for everyday use. With Tommy Thompson’s help, Ted Hall developed the three-wheel Convair Model 116, a two-seater with detachable monoplane wings, tail, booms and propeller. Just three months after we published this article, Model 116 made its first flight and completed 66 others. Hall subsequently tweaked the Model 116 to give it a more powerful engine and refined body, thus producing the Model 118, or the infamous ConVairCar. Although Convair planned to produce 160,000 Model 118’s, the project was shut down after a failed one-hour demonstration flight ruined the prototype and injured its pilot. Read the full story in “Drive Right Up”

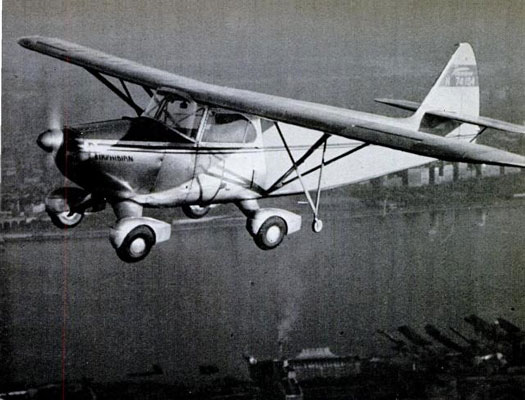

The Airphibian: April 1946

The Airphibian: April 1946

While developing his Airphibian, famed American inventor Robert E. Fulton took a different route than most: instead of altering an automobile for the air, he adapted an airplane for the road. Fulton’s idea for a flying car came from his frustration at having to find ground transportation after landing at an airport. Like us, he figured it would be much more convenient to land wherever you wanted to. The end product could fly 12,000 feet at 110 mph and drive 56 mph on ground. He boasted that the machine’s detachable wings could be disassembled in five minutes by just one man. Although the Airphibian was the first flying car to receive certification from the Civil Aeronautics Administration (predecessor of the FAA), financial difficulties forced Fulton to cancel the project before the Airphibians could go into mass production. Read the full story in “What It’s Like to Fly a Car”
Flying Jeep: May 1958

Flying Jeep: May 1958

Although the Flying Jeep, or Piasecki Airgeep, isn’t what you’d typically imagine upon hearing the words “flying car,” this VTOL could both hover close to the ground and fly several thousand feet above it. Unlike the other machines we’ve covered so already, the Airgeep’s lack of wings allowed it to fly between buildings, trees, and other tight spaces. The Airgeep II, completed in 1962, was fitted with an ejection seat for pilots, two Artouste engines, and a tricycle undercarriage for improved travel on land. Despite its versatility, the Airgeep failed to make a lasting impression and was thus eclipsed by research into more conventional aircraft. Read the full story in “Army Jeep Turns to Skyriding”
