How To Make An Ice Cube Into A Battery

A better way to beat the heat

Share

It’s summertime. That means beaches, bikinis, and rolling brownouts as power grids groan under the weight of overworked air conditioners.

The summer months are the most challenging for grid operators and consumers. Energy-intensive cooling units hoard power during peak hours when the price of electricity is at its highest.

Now, businesses and homeowners are embracing a different kind of air conditioner—one that can charge up overnight when power is plentiful, cheap and clean — to help users save money and grid operators avoid blackouts.

The idea behind ice storage air conditioners is simple: freeze water during the wee hours and use that stored ice to cool buildings all day long.

With CALMAC‘s ice storage cooling, a glycol solution runs through a chiller at night. The liquid coolant then passes through a tube in a tank of water, freezing its contents over a period of six to 12 hours. During the day, the cold glycol solution runs through a heat exchange coil, chilling the air. A fan blows the cool air into an air duct. The coolant continually passes through the tank of ice to stay chilled.

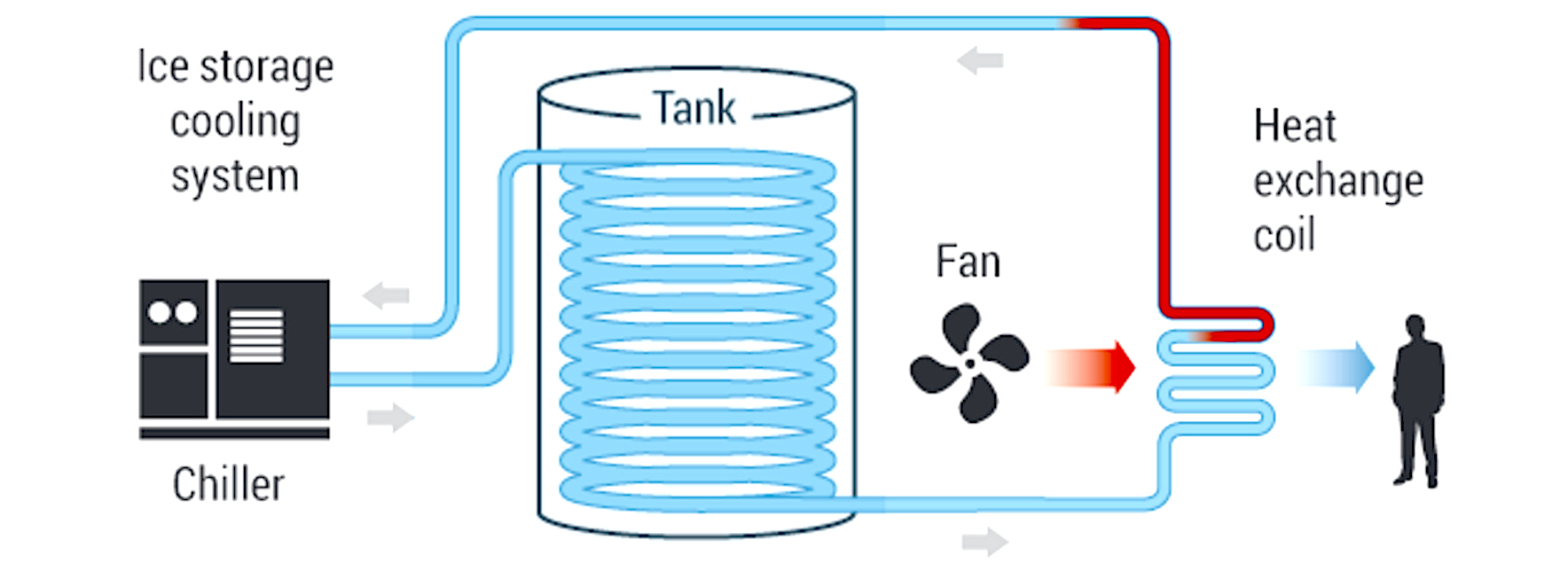

At night, coolant passes through the chiller and then a water-filled tank, freezing the tank’s contents. During the day, a fan blows over a coolant-filled heat exchange coil to provide cold air. The c
At night, coolant passes through the chiller and then a water-filled tank, freezing the tank’s contents. During the day, a fan blows over a coolant-filled heat exchange coil to provide cold air. The coolant stays chilly by repeatedly passing through the tank of ice. CALMAC

Because the system charges after hours, owners can take advantage of low energy costs. During the day, grid operators meet rising demand by ramping up additional power plants that sell the most expensive power. When the sun falls, demand drops off and so does the price of electricity.

Ice storage air conditioners come in all shapes and sizes, helping businesses and homeowners save money by time-shifting energy use to the middle of the night.

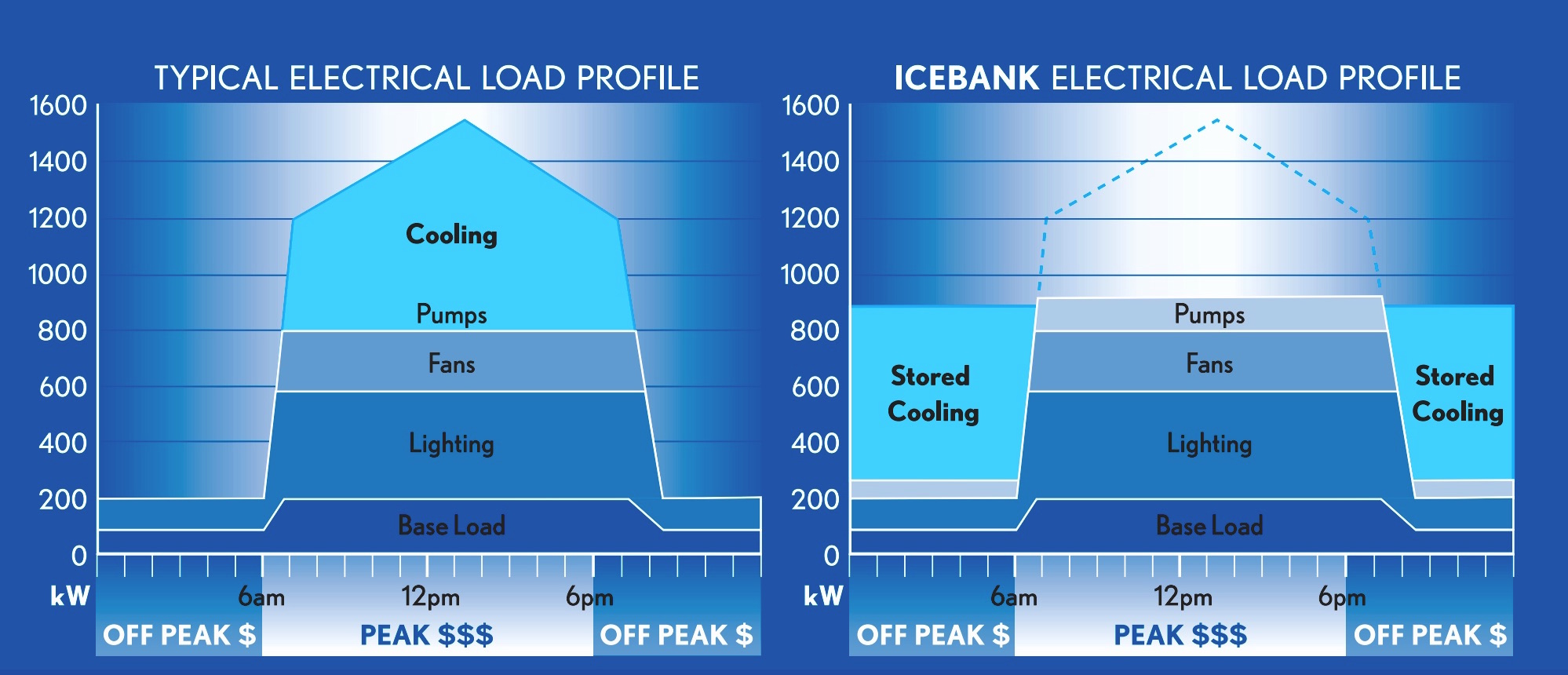

The typical electrical load ramps up during the day as homes and businesses turn on lights and other appliances. Ice storage air conditioners like CALMAC’s ICEBANK time-shift cooling, while pumps and
The typical electrical load ramps up during the day as homes and businesses turn on lights and other appliances. Ice storage air conditioners like CALMAC’s ICEBANK time-shift cooling, while pumps and fans needed for air conditioning continue to run during peak hours. CALMAC

This technology can also help clean energy work more efficiently. Unlike coal and natural gas-fired power plants, renewables do not operate on cue. They operate intermittently. One fix is to store surplus power from wind and solar until it is needed. That could mean a Tesla home battery or a pumped hydro storage system. It could also mean appliances capable of holding energy, be they water heaters or air conditioners.

In this sense, cool storage systems work like batteries, storing energy in the form of ice. They run more efficiently than other forms of energy storage. Because cooling units run at night, they can soak up clean wind energy that might otherwise go unused. More sophisticated systems come equipped with smart-grid controllers that allow grid operators to manage air conditioners — turning chillers off and on as demand rises and falls.

Cool storage systems could a play a bigger role in the years ahead. Rising temperatures will drive up demand for air conditioning. New installations of wind and solar will drive up demand for energy storage. Ice storage air conditioners hit the sweet spot — low-carbon cooling that makes the grid run better.

Jeremy Deaton writes about climate and energy for Nexus Media. Tweet him your questions at @deaton_jeremy .
