Wall-art-worthy cutaways of European, American, and Asian nuclear reactors

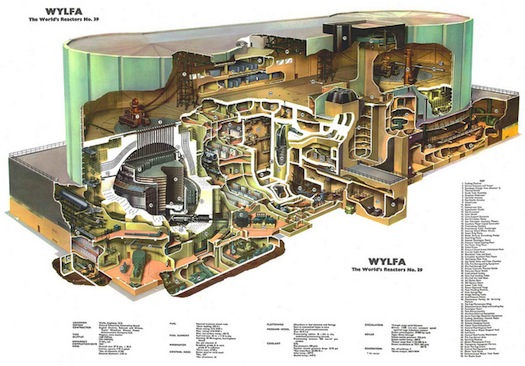

Wylfa The Wylfa reactor, in North Wales, benefits from the cooling effect of the wind in its remote coastal location. It became operational in 1971 and is currently the only working nuclear plant in Wales. Full image here. Flickr User Peacay

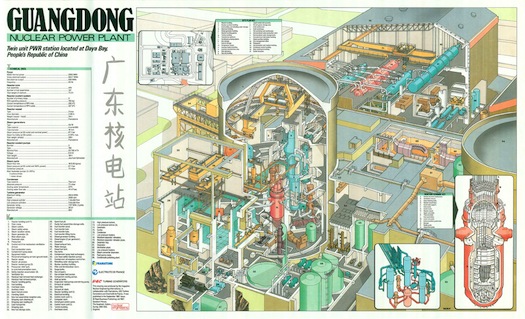

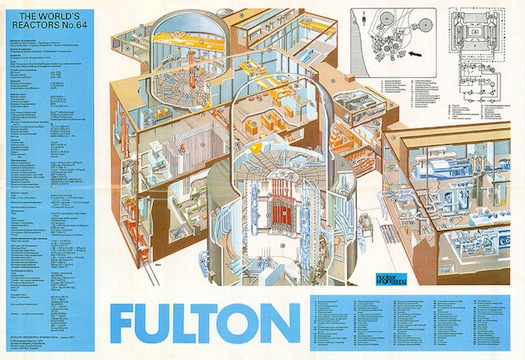

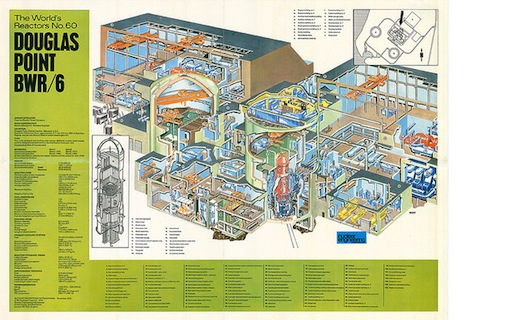

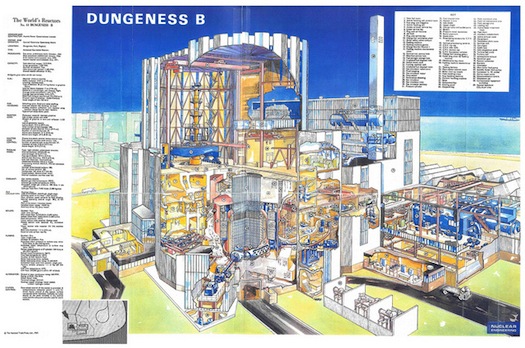

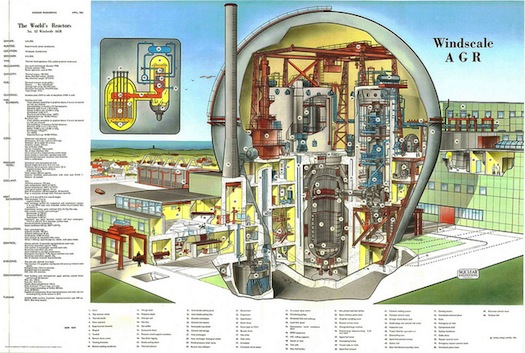

The University of New Mexico discovered a treasure trove of old cutaway schematics of nuclear reactors, dating back as much as 50 years, in the pages of Nuclear Engineering International. If you're interested in nuclear power (or how stuff works) and are looking for some art to hang on your walls, we've got you covered.


Click to launch the photo gallery.

These reactors were built between around 1960 and 1980, typically, and they've gone through some pretty amazing stuff. Some of them are still in use today, one of them is responsible for the worst nuclear accident in its nation's history, and some of them were shut down in the ensuing decades. You can check out the entire UNM archive here, if you're so inclined, or check out our gallery.

[BibliOdyssey via Boing Boing]

This month's How It Works section is brought to you by Digikey. All posts are purely editorial content, which we are pleased to present with the help of a sponsor; the sponsor has no input in the content itself.
