China launched two more massive Type 055 warships

Another Record

Type 055 China Destroyer Launch

Launch

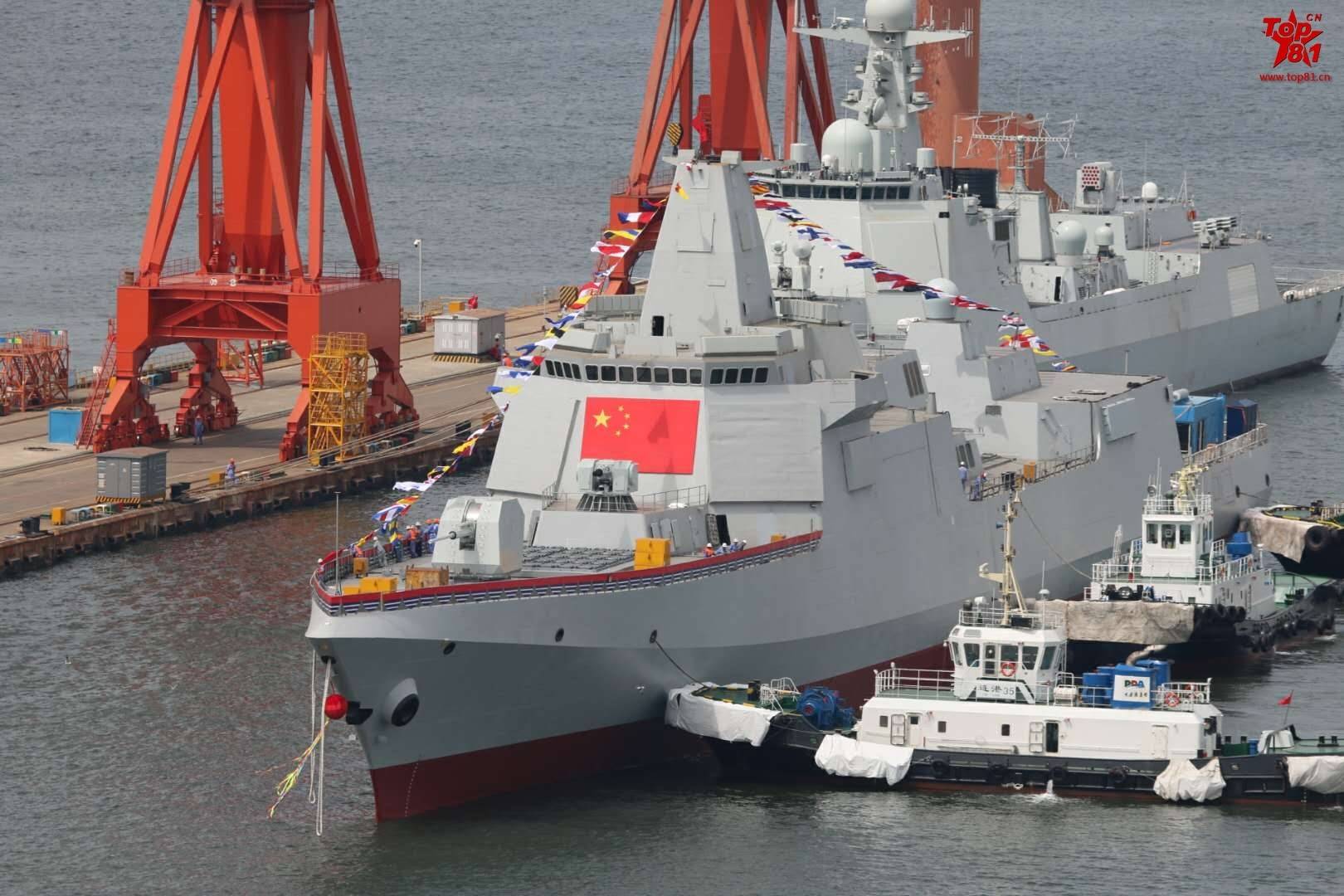

Each Type 055 destroyer (called a cruiser by the US Navy) displaces over 13,000 tons, and has the heaviest missile load of any post Cold War warship.

by78

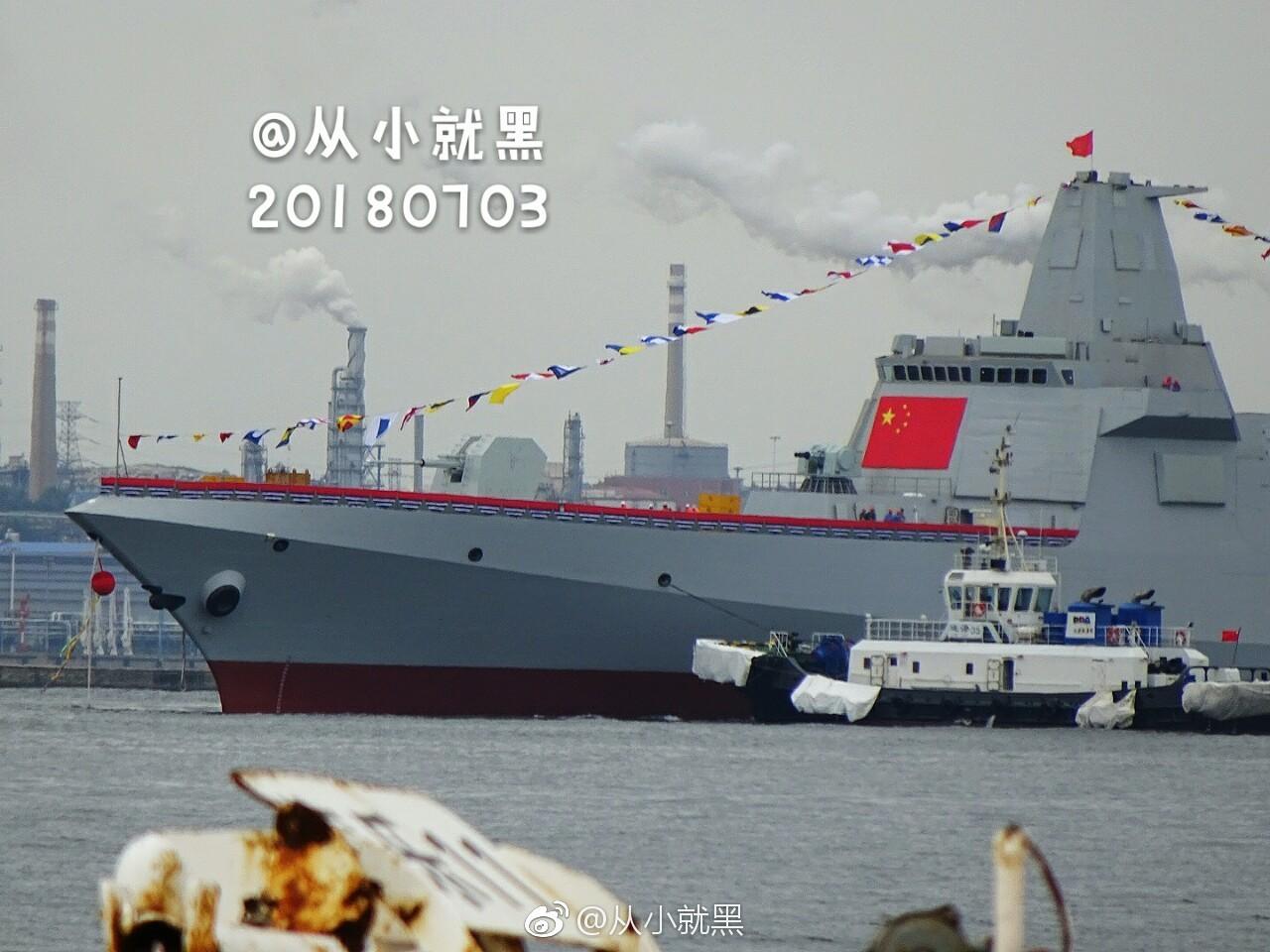

On July 3rd, China launched two gigantic "Renhai" Type 055 guided missile destroyers (DDG). Along with one 25,000 ton Type 071 landing platform dock, another 13,000-14,000 ton Type 055 DDG launched this April, and one 7,500 ton Type 052D, China has launched nearly 80,000 tons of major surface combatant warships. With more destroyers and frigates under construction, it's not impossible that China's total launched warship displacement for 2018 could hit 100,000 tons.

China Navy Type 055 Cruiser

Universal VLS

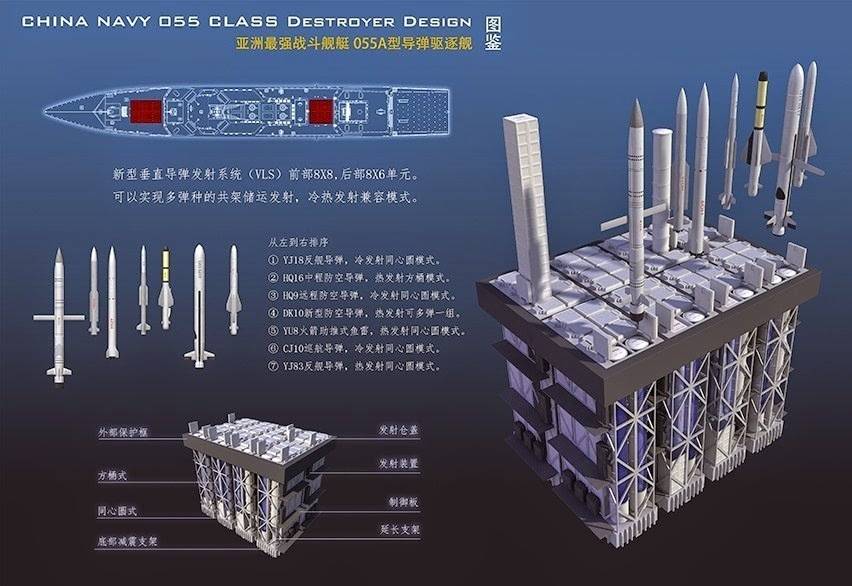

This fanmade CGI shows a variety of weapons that can launch from the Type 055's VLS, 2.1 feet wide and 29.5 feet long, with nearly 60% more volume than the 2.3 feet wide and 25.9 feet long Mk 57 VLS, the largest US VLS system. This VLS can fire large Chinese surface to air, anti-ship and land-attack missiles like the HHQ-9, YJ-18 and CJ-10.

www.junshicg.com

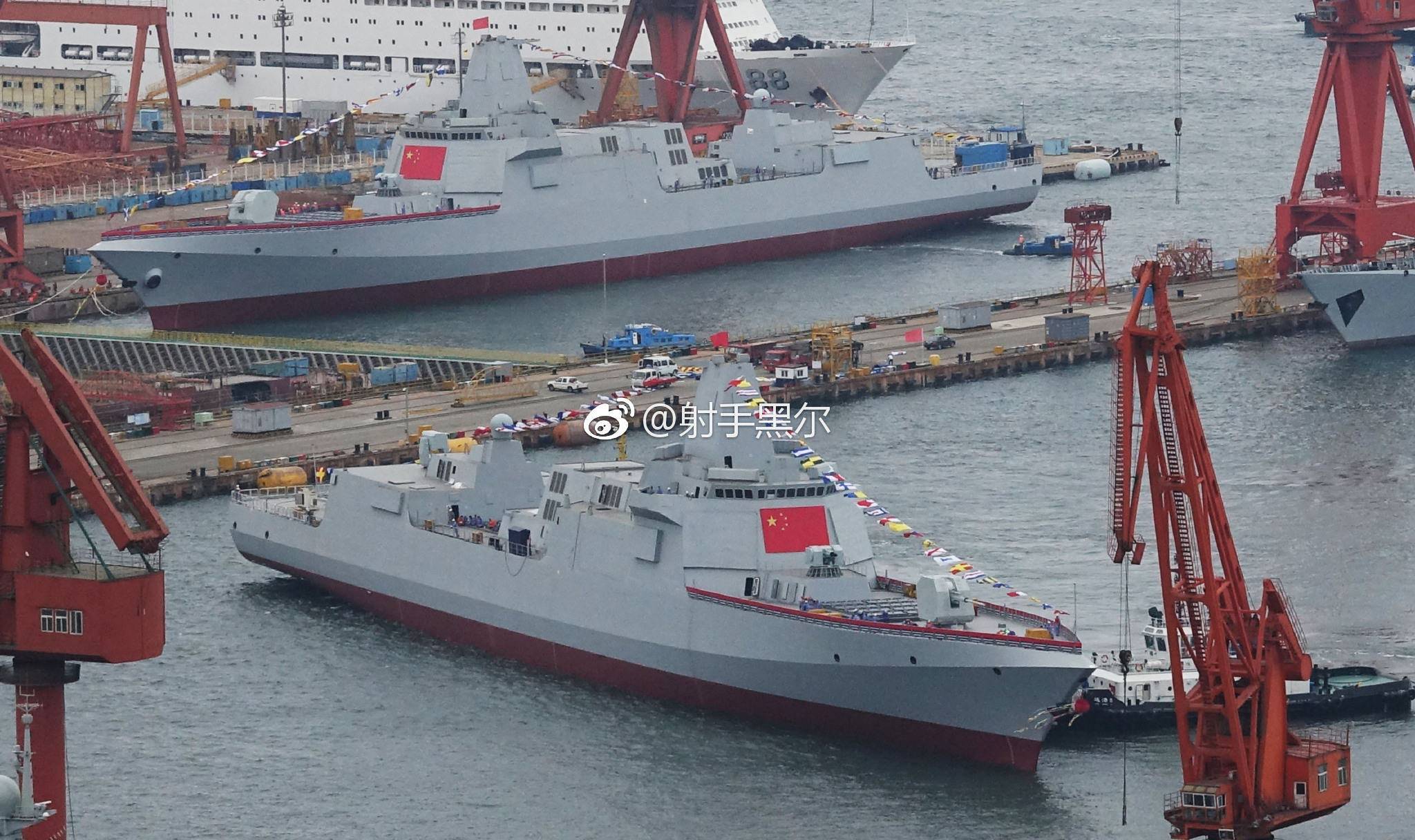

The ships were launched at the sprawling Dalian shipyard (also were the CV-17 aircraft carrier was built). Each Type 055 destroyer (classified as a cruiser by the US Navy due to its large size and arsenal) is 590 feet long and 65 feet wide; it is the world's second largest Post-Cold War surface combatant, after the Zumwalt stealth destroyer. The ships' primary combat systems are giant Type 342X radars and 112 vertical launch system (VLS) cells. The Chinese 'universal' VLS are 2.1 feet wide and 29.5 feet long, making them much larger than the 2.3 feet wide and 25.9 feet long Mk 57 VLS, the largest US VLS system. While the Ticonderoga cruisers and South Korean KDX-III destroyers have more VLS cells than the Type 055; the Type 055 can carry more ammunition mass in its larger VLS.

China railgun Type 055A destroyer cruiser

Type 055A

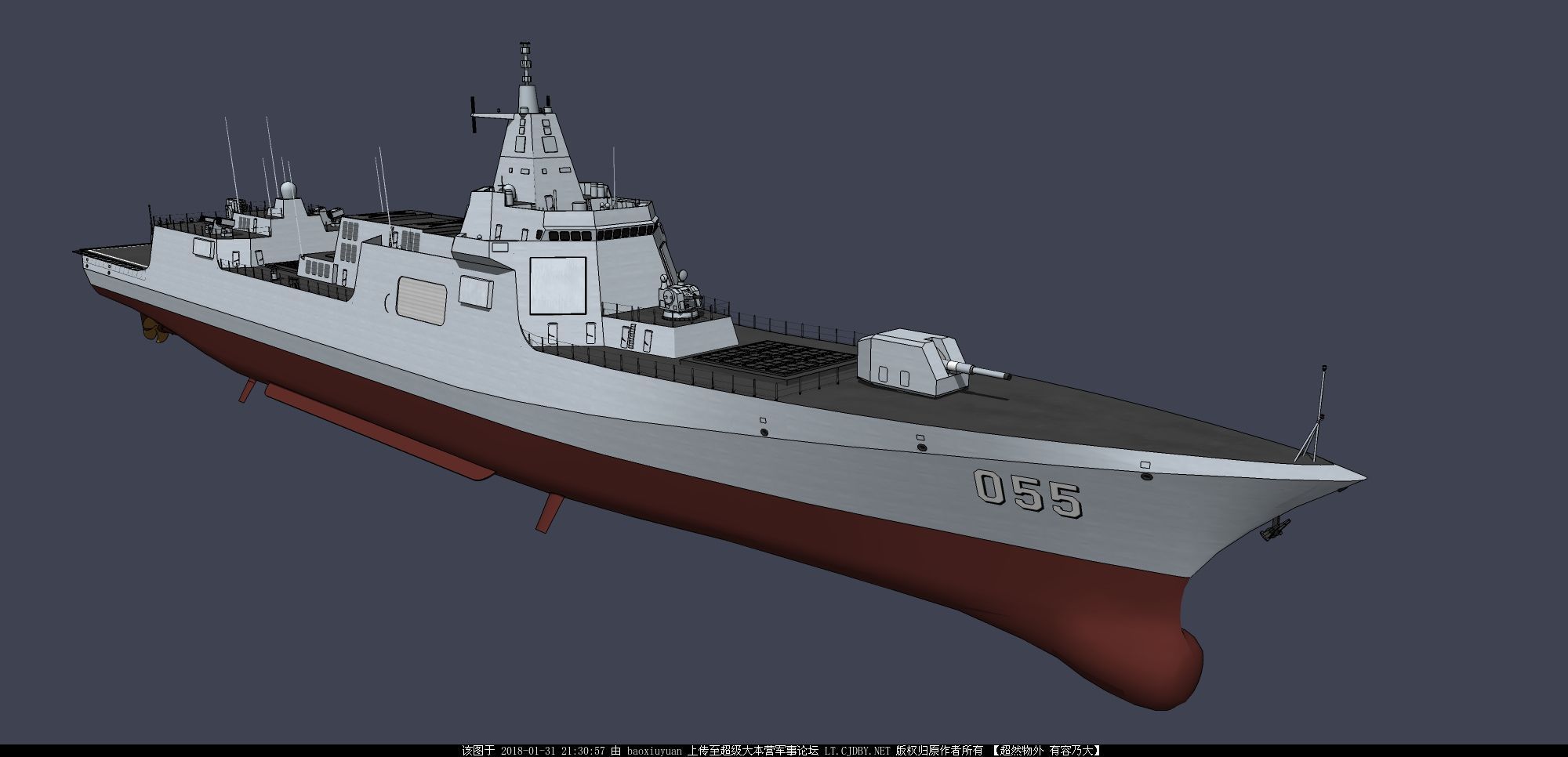

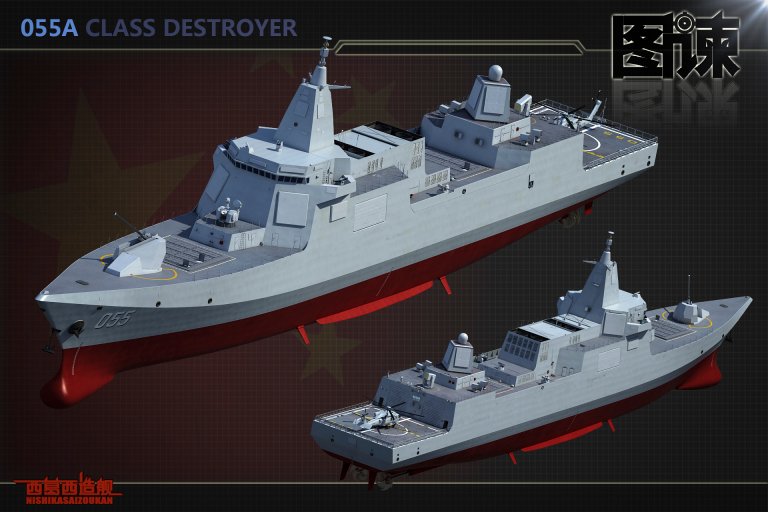

This fan made CGI of the Type 055A destroyer shows it with a railgun in place of the 130mm cannon found on the Type 055 (though the Type 055A may use a stealthier railgun turret).

baoxiuyuan

Currently, each Type 055 has a 5 inch H/PJ-130 cannon. However, reported American analysis claims that China is working to have operational railguns, which use electromagnetic forces to launch Mach 7 shells, by 2025 (this date is prospective and highly dependent the success of the research program). Of China's current warships, only the Type 055 has the necessary space for the electrical generators needed for power hungry railguns. That would likely be the next Renhai variant, the projected Type 055A destroyer, which would have surplus electrical generation through its Integrated Electric Propulsion System (IEPS).

Type 055 China Destroyer Warship

Multiple Launches

With these two warships launched on July 3rd, China now has four Type 055s in the water, and the last to be commissioned by 2020. Another four Type 055s may be built, before construction begins on the Type 055A.

Chinese Internet

In addition to the four Type 055s already launched, four more may be built before Chinese shipyards switch to the more advanced Type 055A.

China Type 055 Destroyer

A Warship fit for a Superpower

The Type 055's vast combat capability and formidable physical presence makes an obvious choice to fly the Chinese flag around the seven seas. There's a smaller Type 052D destroyer behind it (and just over half the size of the Type 055).

by78

The first Type 055 launched last year is likely to be commissioned late this year once the Jiangnan shipyard finishes installing electronics and completes basic crew training. Its three sister ships will probably enter service next year. The Type 055 provides China with a first-rate heavy warship that can deploy globally, whether to show the flag in foreign waters, participate in peacekeeping and joint military exercises, or project power well beyond China's waters.
