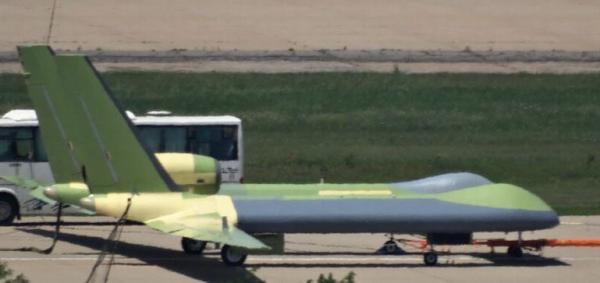

By using the single deck bus in the background (probably 3.2 meters tall, like most buses of its type) as a very crude visual yardstick, a very rough comparison suggests that the Divine Eagle is about 6 meters tall, and 15 meters long (since most high altitude large UAVs have a wingspan to body length ratio of 2.5:1 to 3:1, the wingspan of the Divine Eagle is likely its be 35 to 45 meters across). With a maximum take off weight of at least 15 tons, the Divine Eagle is the world's largest UAV, edging out the RQ-4 Global Hawk. Blitzo at China Defense Forum
SHARE
Divine Eagle China UAV

Divine Eagle

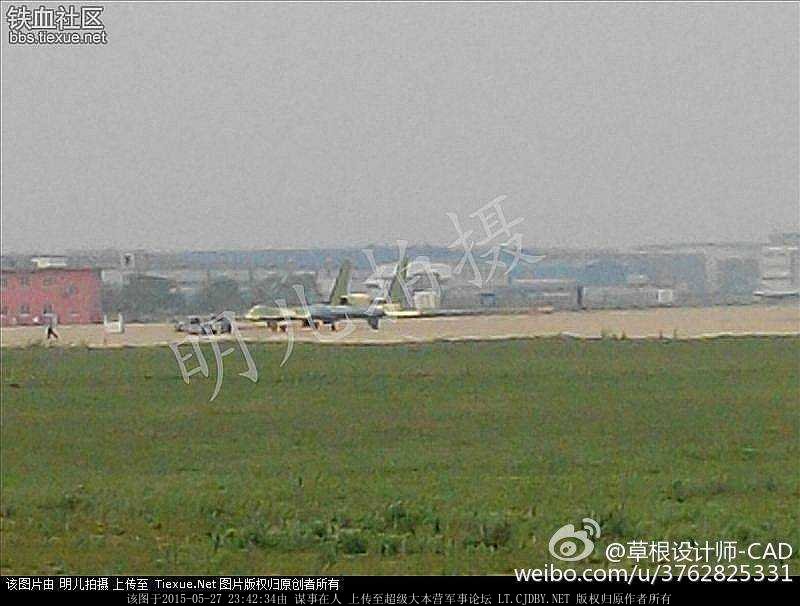

The Divine Eagle is a low observable, high altitude UAV meant detect stealth aircraft at long ranges, using special purpose radars. This low resolution photo shows that similar to the port (left) side seen in the next photo below, the starboard (right) side of the fuselage is also colored grey.

Since photos in May 2015 emerged of the Divine Eagle, China’s giant UAV has been getting a lots of international attention. With its giant, double bodied design, carrying high performance anti-stealth radars, the drones are a potential key part of China’s offensive and defensive military strategy in the coming years. Formations of Divine Eagle UAVs are expected to provide an early warning line to detect threats to China’s airspace, like cruise missiles and stealth bombers, as well as be able to take on such missions as hunting for aircraft carriers in the open waters of the Pacific.

Divine Eagle China UAV

Divine Eagle

By using the single deck bus in the background (probably 3.2 meters tall, like most buses of its type) as a very crude visual yardstick, a very rough comparison suggests that the Divine Eagle is about 6 meters tall, and 15 meters long (since most high altitude large UAVs have a wingspan to body length ratio of 2.5:1 to 3:1, the wingspan of the Divine Eagle is likely its be 35 to 45 meters across). With a maximum take off weight of at least 15 tons, the Divine Eagle is the world’s largest UAV, edging out the RQ-4 Global Hawk.

In late June 2015, new photos emerged of the Divine Eagle prototype, allowing a clearer look at its details. The Divine Eagle has a single engine nestled between its tailfins, with a diameter of over 1 meter. This makes the engine likely to be a medium non-afterburning turbofan producing 3 to 5 tons of thrust, which in turn is usually enough to power a UAV of 12-18 tons in maximum takeoff weight. In comparison, the largest American UAV in open service, the RQ-4 Global Hawk, uses a F-137-RR-100 turbofan engine with 3.4 tons of thrust. The Divine Eagle has a five wheel landing gear layout. The double bodied layout was chosen in order to provide the surface area for carrying large radars, while minimizing internal volume and weight.

Divine Eagle China UAV

Color in the Eagle

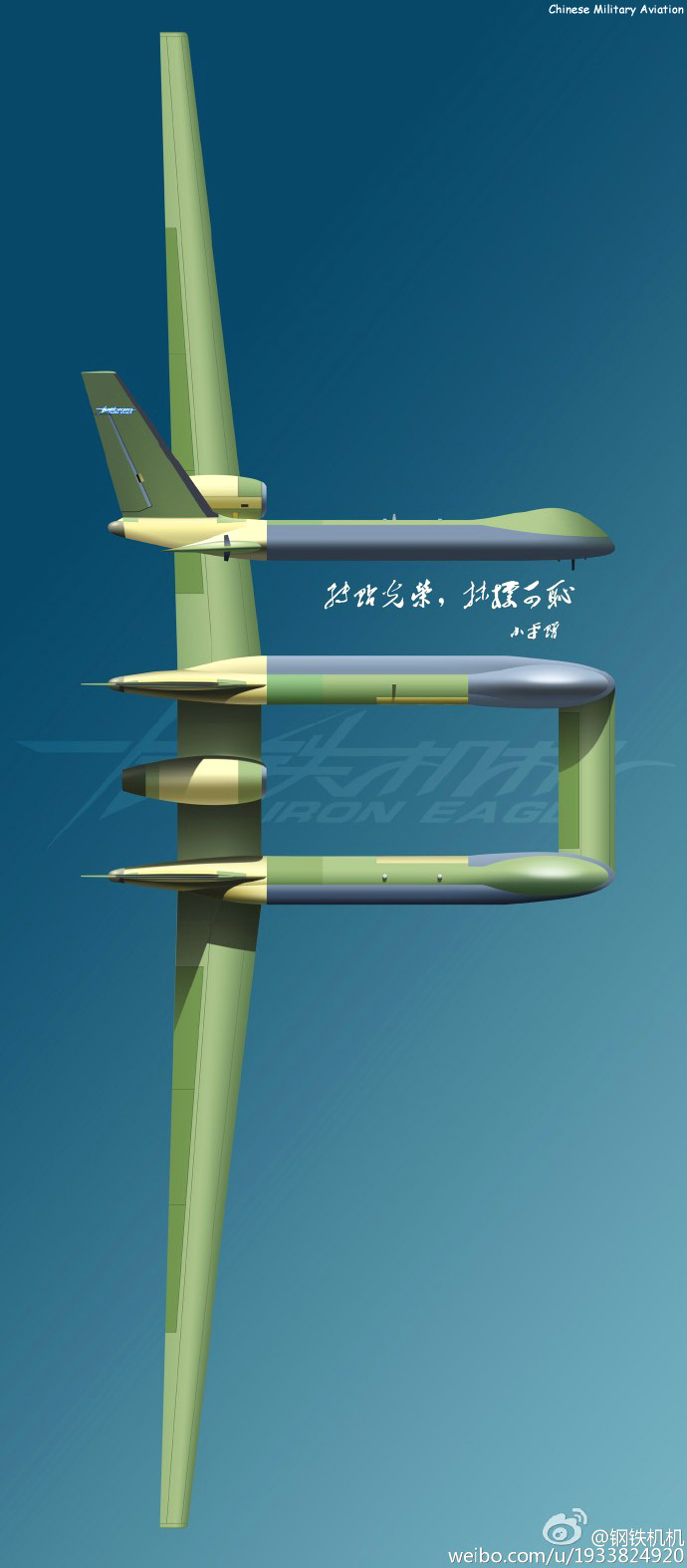

This CGI offers a view of the differing yellow, green and grey blue primer coatings on the Divine Eagle suggest the usage of different materials like composite and aluminum alloys for different sections of the UAV. For example, the grey blue forward dome on the port (left) body is likely to contain a satellite dish for long distance communications, while the grey blue sections on the twin bodied fuselage likely house radar arrays.

By using the single deck bus in the background (probably 3.2 meters tall, like most buses of its type) as a very crude visual yardstick, a very rough comparison suggests that the Divine Eagle is 6 meters tall, and 15 meters long (since most high altitude large UAVs have a wingspan to body length ratio of 2.5:1 to 3:1, the wingspan of the Divine Eagle is likely its be 35 to 45 meters across). The differing yellow, green and grey blue primer coatings on the Divine Eagle suggest the usage of different materials like composite and aluminum alloys for different sections of the UAV. For example, the grey blue forward dome on the port (left) body is likely to contain a satellite dish for long distance communications, suggesting that the material used in the grey blue sections are likely to be highly permeable to electromagnetic waves. The grey blue is also to be found on the starboard side of the right body (facing outside), and if the airframe composition is symmetrical, likely to be found on the portside of the left body (also facing out). Such electromagnetic permeables are likely to house the Divine Eagle’s long range anti-stealth radars (radomes are made of radar transparent materials), indicating that its radar arrays are 10 meters long, which suggests transmitting lower frequency (L and S Band) radar waves (most stealth aircraft are optimized to evade higher frequency, such as X band, radar). The green primer likely covers lightweight materials such as composite, while the yellow primer near the engine suggests some stronger metal alloy, probably to support the engine weight and height.

China Divine Eagle UAV

Divine Eagle Hunts

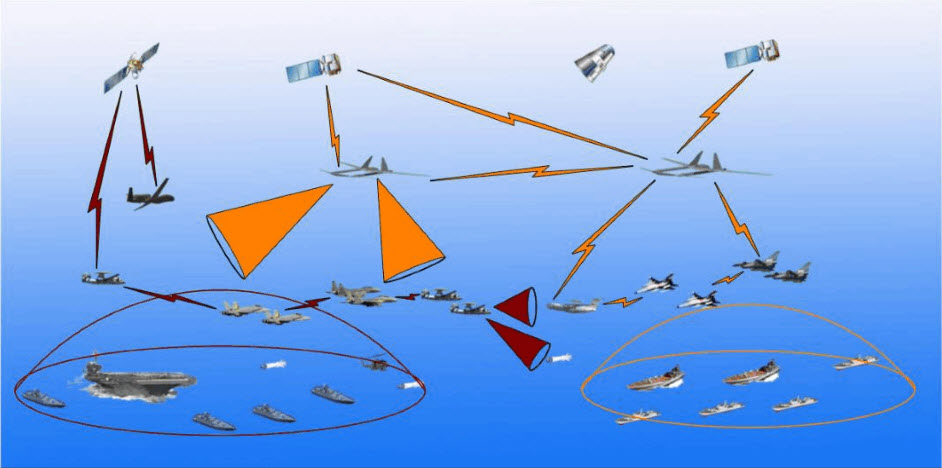

The offensive applications of the Divine Eagle are demonstrated here, as two Divine Eagles mark out not just the enemy aircraft carrier, but also its escorting warships and aviation wing, while vectoring friendly aircraft and ships into combat. One presumes that the Divine Eagle would also be able to find targets for the infamous DF-21D anti-ship ballistic missile.

There is much to learn about the system, but its significance is great. Given the long endurance of the huge Divine Eagle, it could in the future take on tasks that range from watching over China’s manmade South China Sea islands to tailing foreign warships in waters near and far.
