Stellarator fusion reactor gets new life thanks to a creative magnet workaround

Developed over 70 years ago, the stellarator has long been ignored in favor of options like tokamak reactors. It might be time for its 'quasiaxisymmetry' to shine.

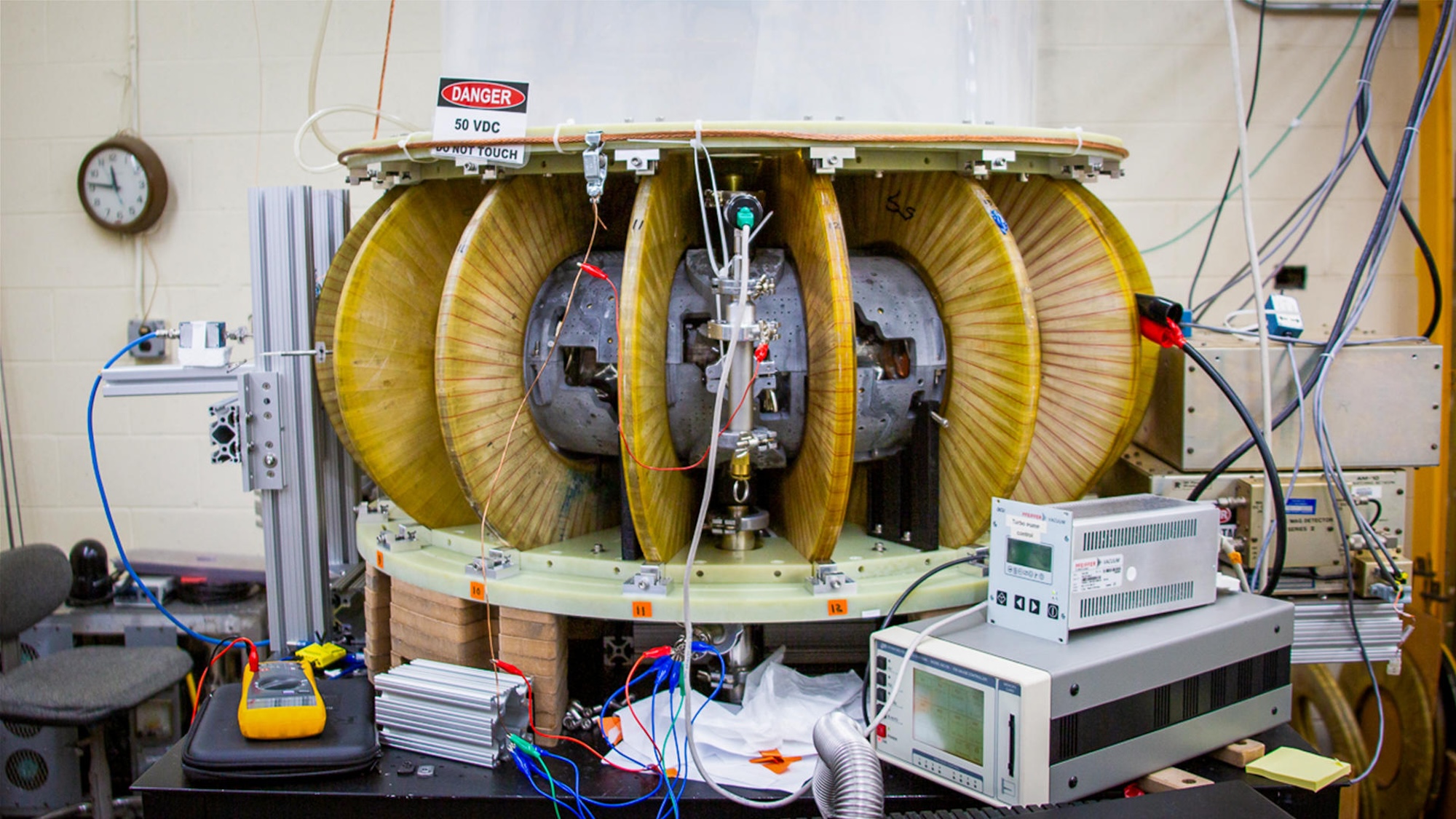

MUSE stellarator fusion reactor

A photo of MUSE, the first stellarator built at PPPL in 50 years and the first ever to use permanent magnets. Michael Livingston / PPPL Communications Department

The quest to harness the holy grail of clean energy is potentially moving a step in the right direction thanks to the same principles behind refrigerator magnets. Earlier this week, researchers at the Department of Energy’s Princeton Plasma Physics Laboratory (PPPL) revealed their new stellarator–a unique fusion reactor that uses off-the-shelf and 3D-printed materials to contain its superheated plasma.

First conceptualized over 70 years ago by PPPL’s founder, Lyman Spitzer, a traditional stellarator works by employing electromagnets precisely arranged in complex shapes to generate magnetic fields using electricity. Unlike tokamak reactors, stellarators do not need to run electric current specifically through their plasma to create magnetic forces—a process that can interfere with fusion reactions. That said, tokamaks still effectively confine their plasma so well that they have been the preferred reactor choice for researchers, especially when factoring in a stellarator’s comparative costs and difficulties. Because of all this, Spitzer’s design has remained largely unused for decades.

[Related: The world’s largest experimental tokamak nuclear fusion reactor is live.]

Engineers behind the new stellarator known as MUSE, however, say their workaround could solve these barriers. Instead of electromagnets, the device uses permanent magnets—albeit much more powerful and finely tuned than ones found in everyday novelty and souvenir collectibles. MUSE requires permanent magnets made using rare-earth metals that can exceed 1.2 teslas, the unit of measurement for magnetic flux density. In comparison, standard ferrite or ceramic permanent magnets usually exhibit between 0.5-to-1 teslas.

“I realized that even if they were situated alongside other magnets, rare-earth permanent magnets could generate and maintain the magnetic fields necessary to confine the plasma so fusion reactions can occur, and that’s the property that makes this technique work,” Michael Zarnstorff, a PPPL senior research physicist and MUSE principle investigator, said in a statement.

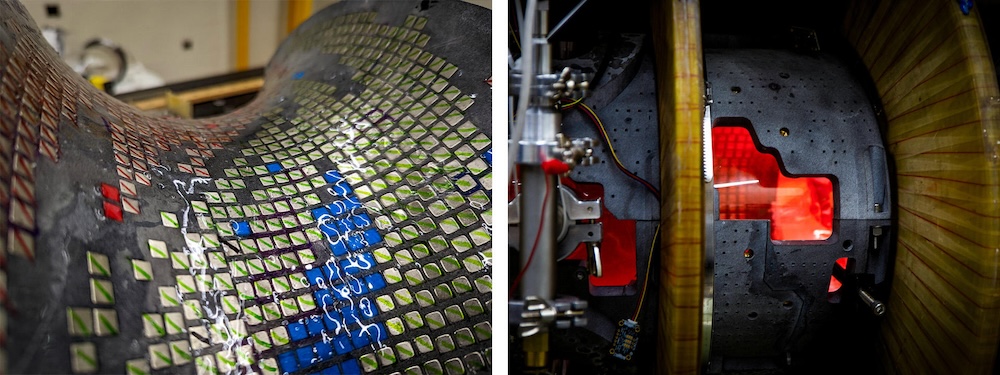

t left: Some of the permanent magnets that make MUSE’s innovative concept possible. At right: A close-up of MUSE's 3D-printed shell.
Left: Some of the permanent magnets that make MUSE’s innovative concept possible. Right: A close-up of MUSE’s 3D-printed shell. Credit: Xu Chu / PPPL and Michael Livingston / PPPL Communications Department

Building a stellarator with permanent magnets is a “completely new” approach, PPPL graduate student Tony Qian added. Qian also explained that the stellarator alteration will allow engineers to both test plasma confinement ideas and build new devices far more easily than before.

Atop the promising design alterations, MUSE reportedly manages what’s known as “quasisymmetry” better than any previous stellarator—more specifically, a subtype called “quasiaxisymmetry.”

In extremely simplified terms, quasisymmetry is when a magnetic field’s shape inside a stellarator isn’t the same as the field around the stellarator’s physical shape. Nevertheless, the overall magnetic field strength remains uniform, thus effectively confining plasma and increasing the chances for fusion reactions. According to Zarnstorff, MUSE pulls off its quasisymmetry “at least 100 times better than any existing stellarator.”

From here, the researchers intend to further investigate the nature of MUSE’s quasisymmetry, while also precisely mapping its magnetic fields—all factors influence the odds of achieving stable, net positive fusion reactions.

Whether or not scientists will discover the breakthroughs necessary to make green fusion energy a reality anytime soon remains to be seen. But thanks to some creative problem-solving using what are ostensibly very heavy duty fridge magnets, the long-overlooked stellarator could prove a valuable tool.
