By Vin Marshall Posted 06.29.2011 at 10:05 am 19 Comments

The Tube Amp, Remixed The 16LS tube-amp kit we used requires speakers in the four-to-eight-ohm range. John B. Carnett
View Photo Gallery

Half a century ago, vacuum tubes were very common in audio amplifiers. A small voltage applied to the grid of a vacuum tube controls a relatively large current that drives the electromagnet in a speaker, creating movement and thereby sound. Modern solid-state amps are superior in cost, size and reliability, but many people still prefer the warm sound and mesmerizing orange-yellow glow of a tube amp.

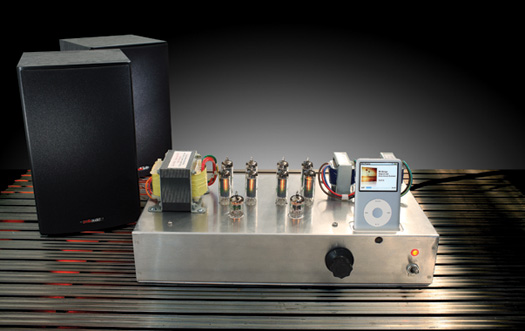

Fortunately, there’s a way to combine the distinct sound and look of tubes with the utility of an iPod dock. I’ve seen a few commercial and DIY tube-amp docks, but they’re expensive, uninspired or both. So I’ve come up with a version that anyone can build for about $400.

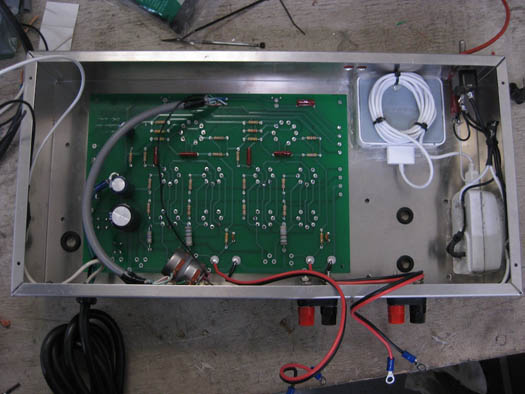

It uses a number of off-the-shelf components, including the dock itself and an easy-to-assemble tube-amp kit for the heart of the system. I used the 16LS kit from s5electronics.com, but there are many options depending on how much money you want to spend and how loud you want the amp to be. I built my dock into an aluminum enclosure from Hammond Manufacturing. You can replicate mine or design your own.

Once you’ve made those choices, the most time-consuming part of the project is putting holes in the enclosure and mounting the components. Add a set of speakers, and you’ll have a functional and cool-looking amp you can control with a remote. It isn’t outrageously loud, but it will easily fill a living room with fantastic sound.


Here's how to build your own tube amp. Complete build instructions and diagrams are available here.

Want to read more articles like this, plus tips and tricks, home hacks, DIY projects, and more? Subscribe to Popular Science today, for less than $1 per issue!
