How It Works: The Sturdiest Solid-State Storage

Next-generation laptops won’t have hard drives. Instead, they’ll use flash memory—the same found in camera memory cards and iPhones. Flash-based drives are thinner, faster and nearly indestructible

By Lauren Aaronson Posted 03.13.2008 at 3:53 pm 6 Comments

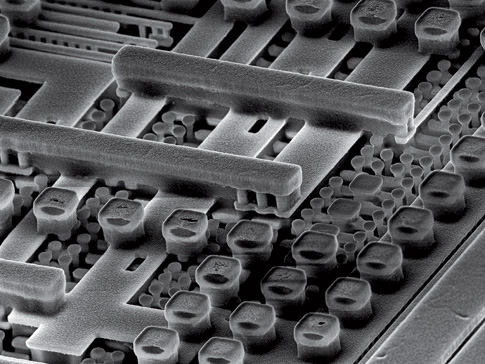

Save Small These scanning electron microscope images zoom 10,000x on a flash drive. Made by Micron Technology, the 64-gigabyte, three-by-two-inch drive is destined for notebook computers. Courtesy Micron

Like a traditional hard drive, a flash-based drive stores information in the computer-readable language of 0s and 1s. But instead of writing data by flipping magnetic poles on a spinning disk, flash memory just shuttles electrons around on a stamp-size microchip.

With no moving parts (except, of course, the electrons), a flash drive eats less power and is more durable than an ordinary hard drive. It can even survive a 10-foot drop. (A hard drive can wipe out your data if its mechanical arm scratches its disk.)

The cost per gigabyte is still high, but it’s falling fast, and flash drives are already starting to appear in some laptops.

How Flash Memory Saves a File: Courtesy Micron

How Flash Memory Saves a File

Flash memory stores 0s and 1s in millions of miniature transistors, each 1,000 times as thin as a human hair. If the transistor conducts current, the chip reads it as 1; if not, it’s 0. The current flows just underneath the transistor along the chip’s base, or substrate [A].

When the chip is empty, all transistors are set to 1. But when you hit “save,” the chip records data by blocking the current to some transistors, turning them into a 0. To do so, the chip briefly applies 20 volts to a piece of silicon called a control gate [B]. This pulls electrons onto another silicon bit called a floating gate [C], leaving a positively charged area directly below—and breaking up the usual path of electrical current.

The only way to move the electrons and change the pattern of 1s and 0s—thereby changing your data—is by applying precise voltages to the transistors. That means even kicking your laptop won’t erase your file.

Size: 3 x 2 in.
Capacity: up to 64 GB
Speed: Can save 35 MB per second
Info: micron.com
