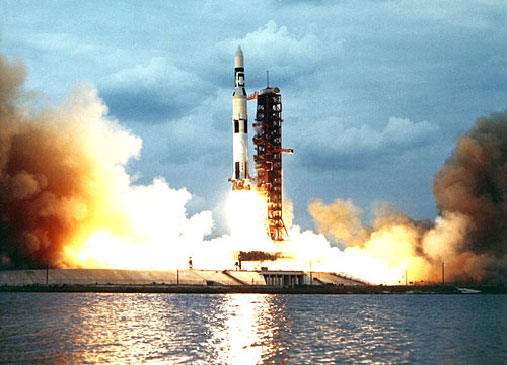

The real Saturn V.
The real Saturn V. NASA
SHARE
https://twitter.com/Gap/status/704740352075415552//

1969 was a year of space exploration, rock and roll, and most notably, the founding of The Gap clothing store. As part of an ad campaign for its “1969” line of jeans, The Gap has been touting its heritage, placing jeans next to other things that happened in 1969. If you’re nerds like us, the Apollo 11 mission tops the list of that year’s highlights.

The Gap thought so too, honoring the launch of the first lunar landing by placing a historical space launch next to some quality denim.

However, that’s not the Saturn V rocket used on 1969’s Apollo 11 mission. It’s a Space Shuttle. The first Shuttle launch wasn’t until Columbia in 1981. The Saturn V was a modular rocket constructed like a single tower.

Our best guess for exactly which Shuttle appears in Gap’s ad is the ninth modification of the shuttle Discovery, which flew from 1998 until 2011. However, the graphic designer seems to have erased a few distinguishing marks that would make the confirmation of the model easier.

The real Saturn V.
The real Saturn V. NASA

The biggest tell for distinguishing the rocket is the color of the wing panels, tiles that run near the rear of the wing. According to this incredibly handy guide to Space Shuttle markings made for hardcore Shuttle modelers, the wing panels were predominantly solid black until the eighth modification of Challenger in 1997.

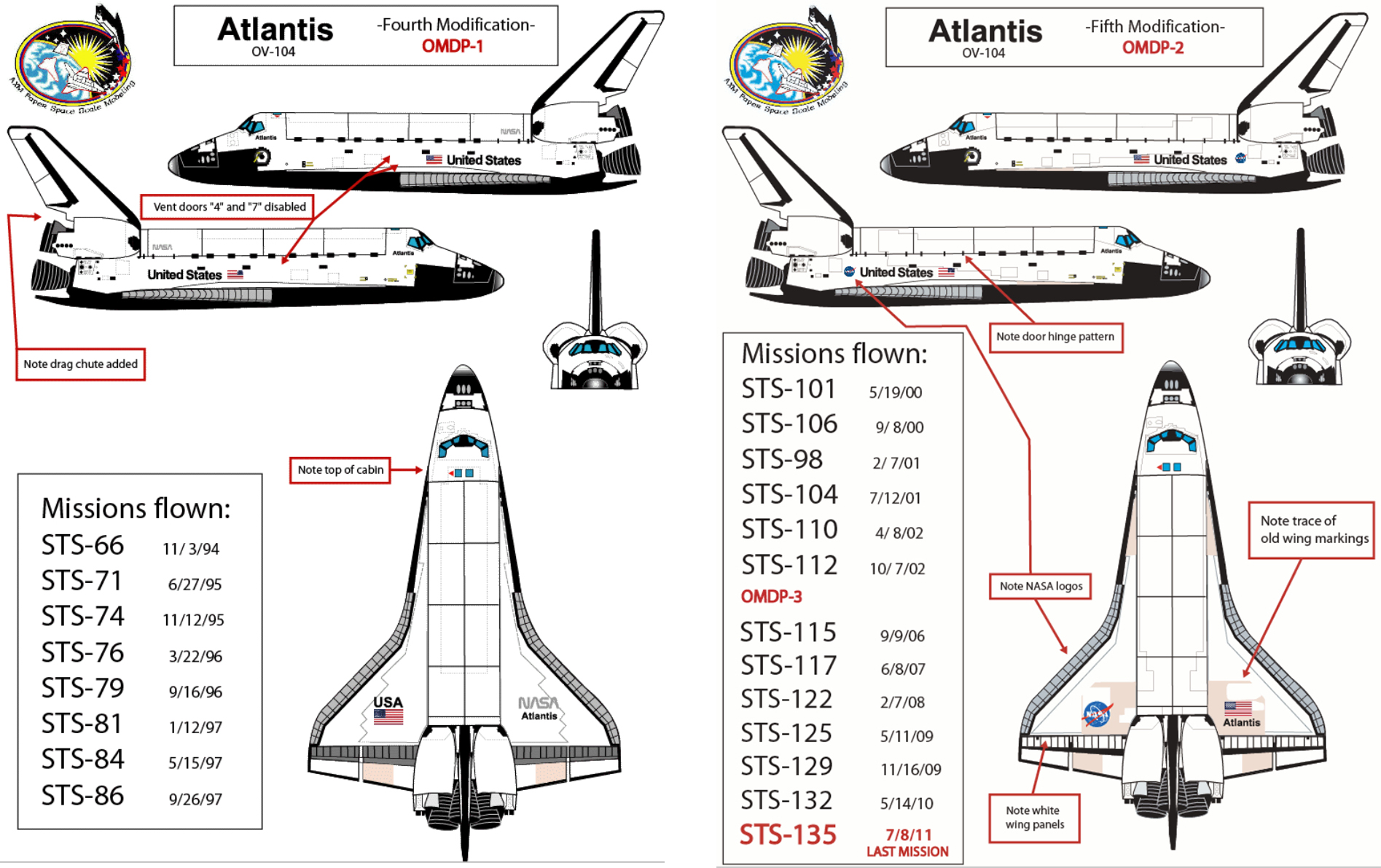

The difference between the fourth and fifth modification of the Atlantis shuttle can be seen in the transition away from black tiles at the bottom of the spacecraft.
The difference between the fourth and fifth modification of the Atlantis shuttle can be seen in the transition away from black tiles at the bottom of the spacecraft. Alfonso X Moreno

If you eliminate those models with black wing panels, there are six models of NASA shuttles that could possibly be pictured: the eighth and ninth modification to the Discovery, the fifth modification of the Atlantis, the second and third modification of Endeavor, and the eighth modification of Columbia. Luckily, we can narrow these down by looking at the very slight variations between shuttles.

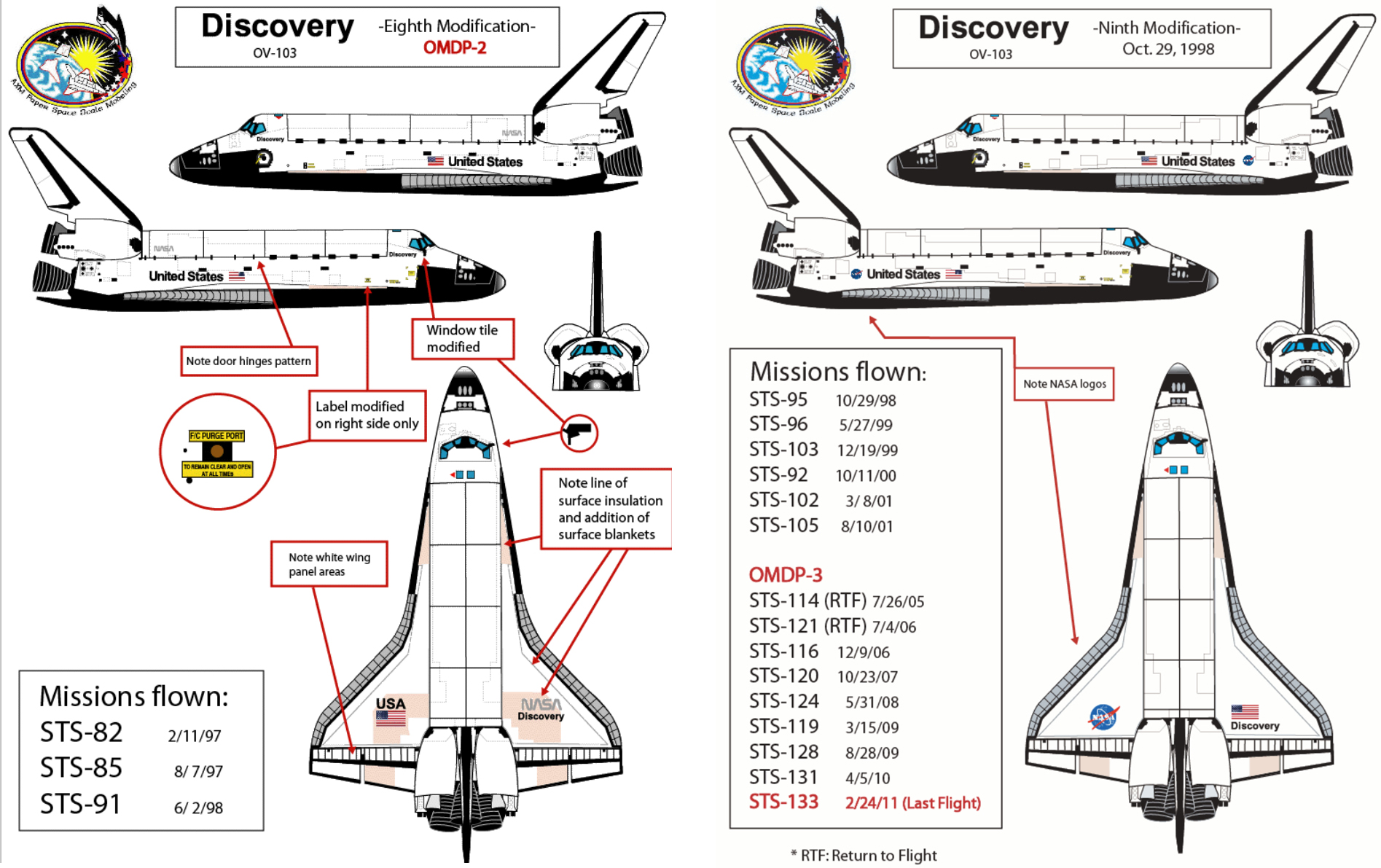

Differing logos and coloration separate the eighth and ninth modification of the Discovery shuttle.
Differing logos and coloration separate the eighth (left) and ninth (right) modification of the Discovery shuttle. Alfonso X Moreno

The easiest way to narrow it down from there are the markings and logos on the wings. The eighth modification of Discovery and the second modification of Endeavor both have NASA logos where the US flag is located in the photo. That brings us to four remaining contenders.

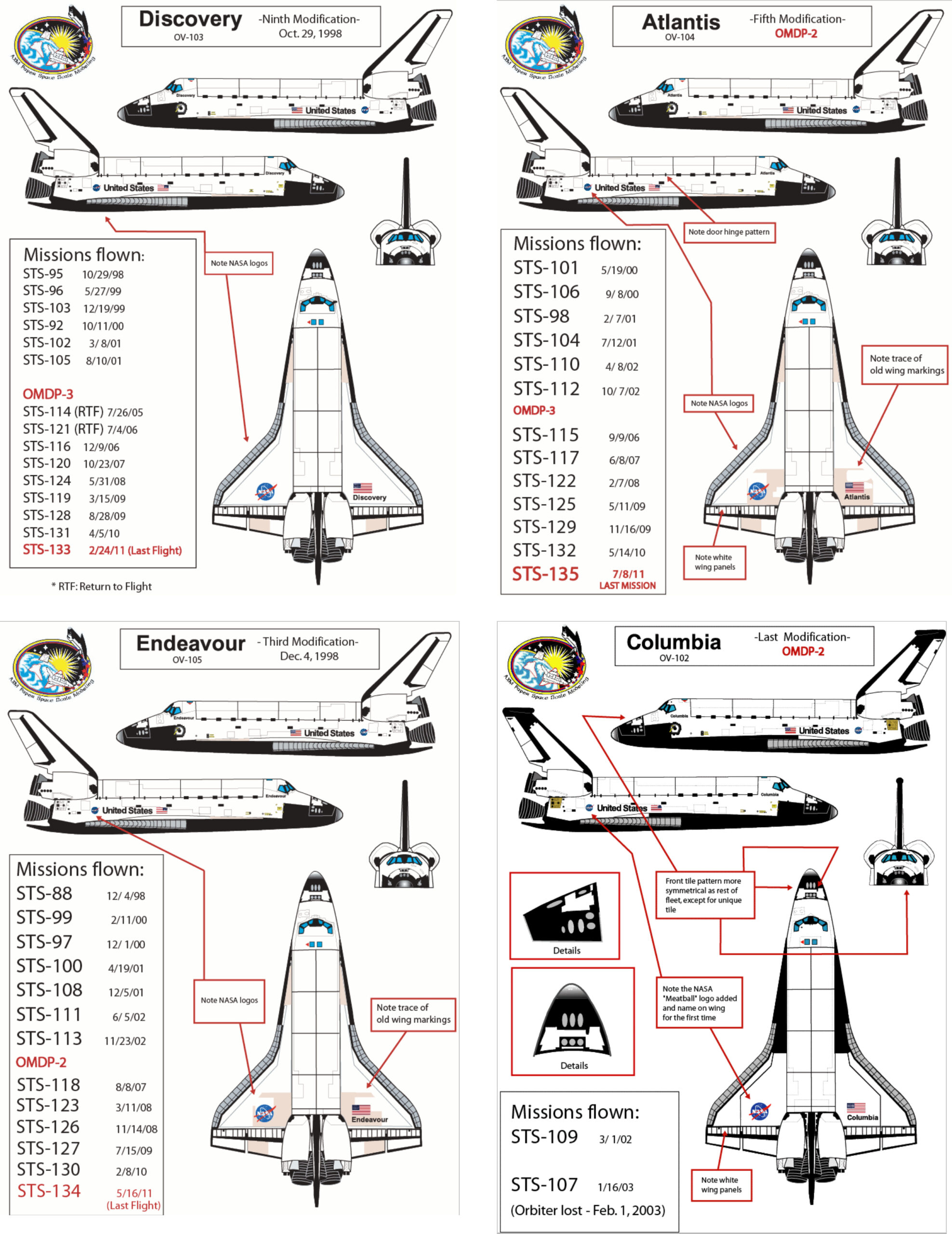

The four potential shuttles used in Gap's mislabeled photo.
The four potential shuttles used in Gap’s mislabeled photo. Discovery is the most likely candidate. Alfonso X Moreno

Here’s where we get nitpicky. Those shuttle markings and logos that we noted earlier actually appear to leave their own markings on the wing when removed—except for some reason on Discovery. Each iteration of Atlantis, Endeavor, and Columbia have visible yellow discoloration of the panels surrounding the logos, at the base of the wings. Also, Columbia doesn’t have these same markings on its elevons, which all the other shuttles share.

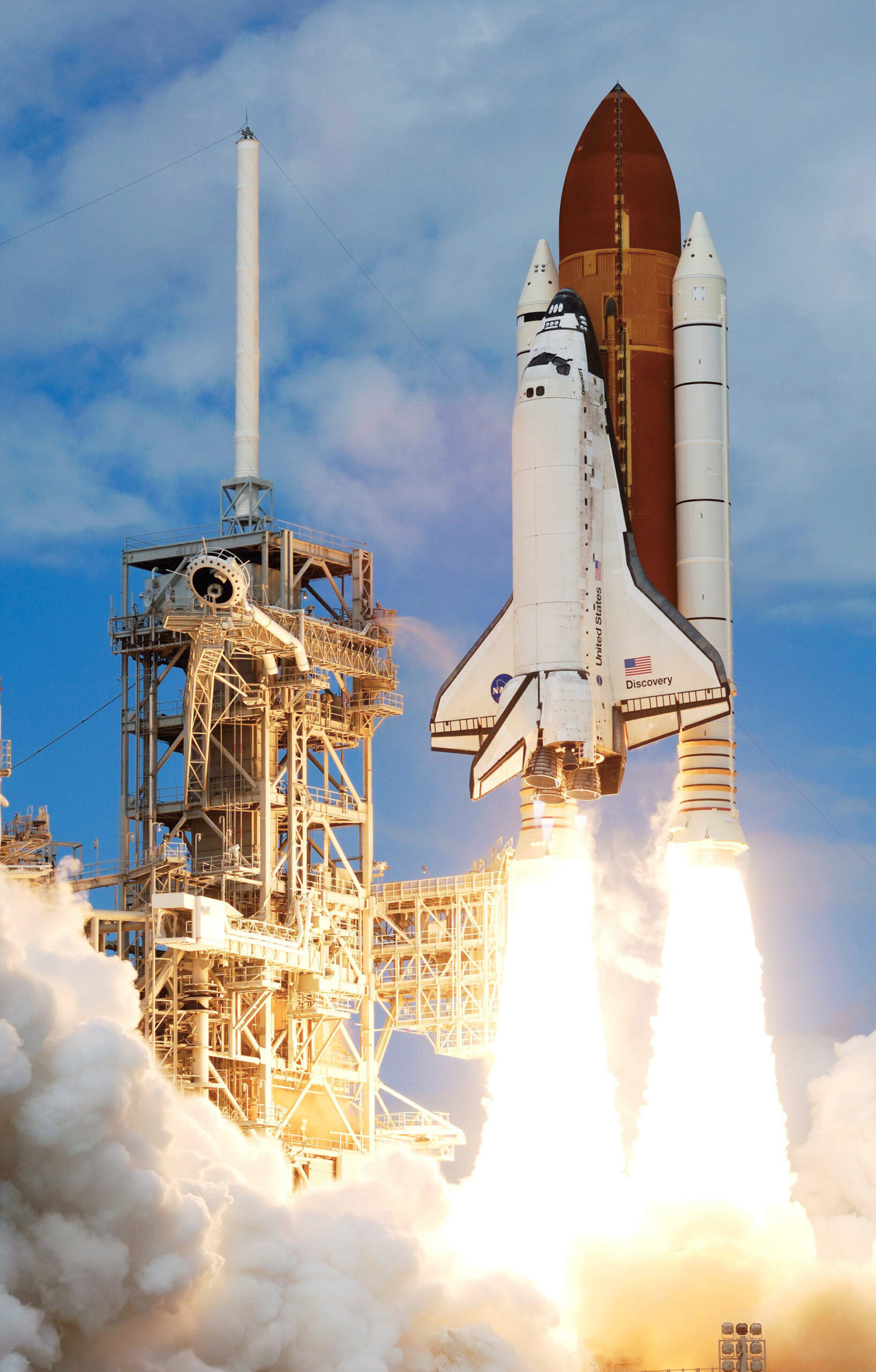

The ninth modification of the Discovery shuttle launches for its STS-120 mission on October 23, 2007.
The ninth modification of the Discovery shuttle launches for its STS-120 mission on October 23, 2007. Wikimedia Commons

Barring serious modification of the image, which seems unlikely, that shuttle is the ninth modification of Discovery, dating the photo at least 29 years after 1969.

The only thing that is still a mystery is the separation of windows in the cockpit. No image or schematic that we were able to find showed a shuttle with those same markings. From what we could tell, the black tiles that makes the individual windows of the shuttle’s control center were for some reason doctored by the graphic designer. (And if you have a better idea as to why, let us know.)

Then again, Gap could have just done it right in the first place.
