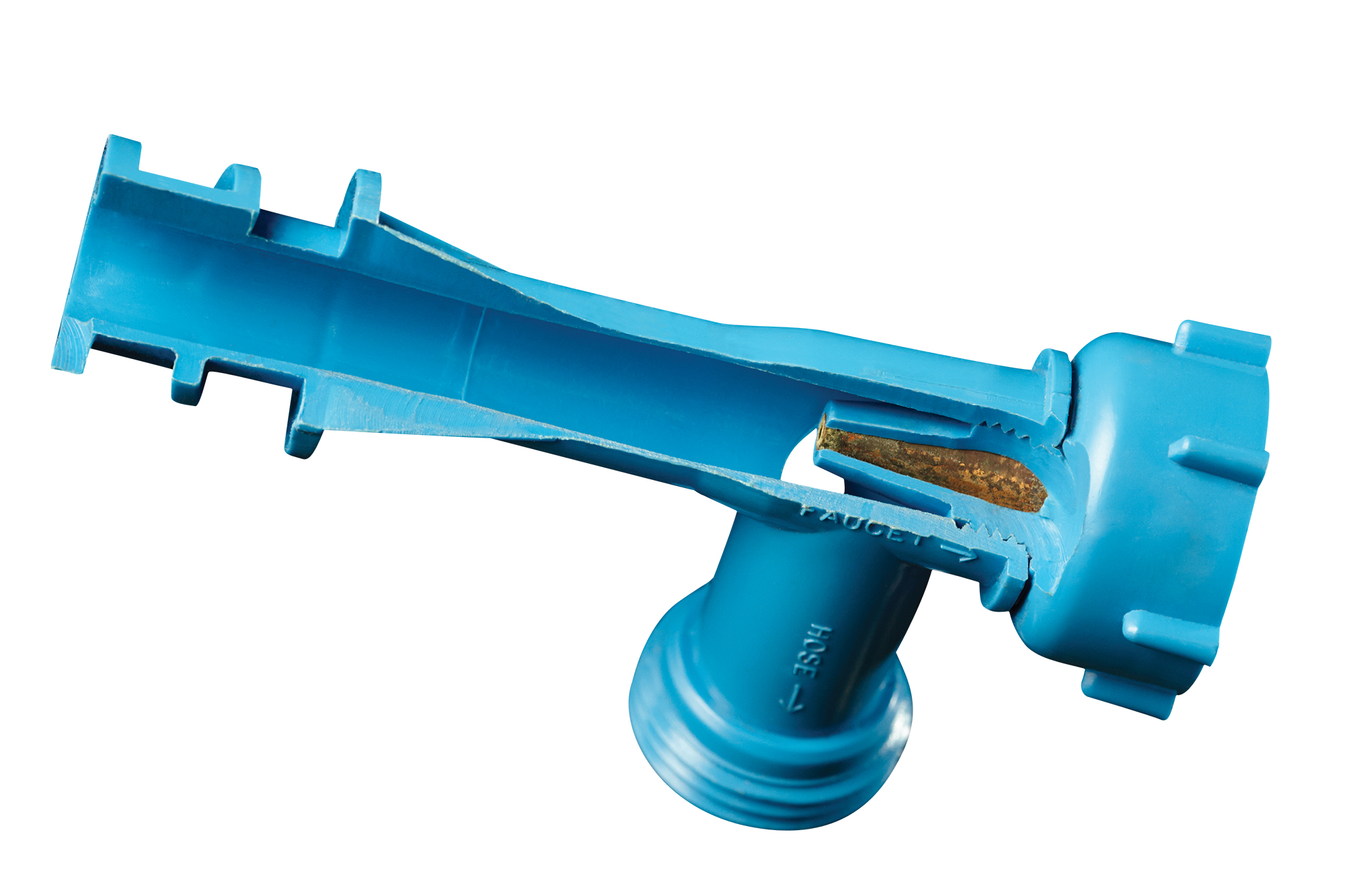

When you blow air across the top of a straw dipped in soda, liquid rises up the tube. This might seem strange, but a Venturi pump—named after the Italian physicist who invented it—takes advantage of the same effect, simply by virtue of its shape.
Any high-velocity, high-pressure jet of liquid or gas creates suction in its wake. As molecules zoom by, nearby material rushes in to fill the void. So if you force a jet through a constricted section of tubing, you can make a pump with no moving parts.
Most Venturi pumps use three openings: one for the jet, one for suction, and the last as an exit. The devices are great for shallow-water wells in rural areas because they require no electricity, motors, or bearings to work at the bottom of the well. Plus, a metal Venturi pump can last decades in water.
The pumps can also mix dissimilar materials. A jet of gas can suck up liquid, so you can use compressed air, a pump, and a garden hose, for instance, to empty a flooded basement. Another example: the "Vinturi," a funnel-like contraption that mixes air into wine as it's poured (for anyone who thinks aerating wine makes it taste better).
onion, cumin, powdered sugar, and even bread flour. About the only disappointment in my kitchen was chili powder, which makes a pathetic little flame. So much for extra heat.
Warning: Mixing flammable powders with pure oxygen is dangerous, and blowouts occurred with this setup. Do not attempt.
This article originally appeared in the September 2013 issue of Popular Science.
Please explain how this works:
"The devices are great for shallow-water wells in rural areas because they require no electricity, motors, or bearings to work at the bottom of the well."
What is moving initially to create the jet that sucks the water up without power?
The device at the bottom of the well would be like the picture above. There would be no moving parts (at the bottom of the well). The "suction" would come from air being pumped down from the surface into the Venturi pump's "jet" opening, which would suck water into its "input" opening and out of its "exhaust" opening. Its "exhaust" opening would flow into a pipe back to the surface. So you'd be pumping air down the well and getting water back up.
"Warning: Mixing ANYTHING with pure oxygen is dangerous, and blowouts occurred with this setup. Do not attempt."
Fixed that for you. A 100% oxygen atmosphere renders many things flammable that wouldn't be normally. See Apollo 1
