Mechanical engineer Jason Bell has helped people throw themselves off the New River Gorge Bridge in Fayetteville, West Virginia, for more than a decade. About 400 BASE jumpers each year, in fact, leap from the 876-foot-high span before deploying their parachutes at Bridge Day, an annual extreme sports event Bell helps run. But two years ago, he decided to build a new thrill for spectators and jumpers alike: a catapult that hurls daredevils head over heels into the chasm below.
Bell's creations include an electric go-kart and an automated towrope to pull his kids up their backyard sledding hill; he even built smart features into his home. (He can remotely adjust lighting, audio, security, and video camera systems.) But he had never attempted to build anything quite as daring as a human catapult. "Very few have been built, and many have resulted in disaster," he says. "That just made it all the more challenging."
The basic elements, at least, came together easily. Every October on Bridge Day, local authorities allow Bell to co-opt a 20-foot-deep section of the bridge for BASE jumpers, which means his catapult could be no longer than that. Bell spent a year drafting the structure—a sturdy base and an arm made of steel tubing—using a 3-D design software called SolidWorks. He eventually settled on a rotating arm 12 feet long, which a local workshop agreed to machine to his specifications. Meanwhile, Bell spent nights and weekends in his garage constructing a compressed-air launching system.
In the first tests, Bell and his friend Joe Caulfield launched stuffed animals, laundry bags, and 200-pound sandbags across his front lawn. The catapult hurled even the heaviest objects more than 50 feet. At one point, however, the stress forced a bearing to shoot out of the catapult's arm joint like a bullet. (On Bridge Day, two of the caster wheels even cracked from the strain exerted by the 2,500-pound machine.) Bell created and installed a custom bearing, added spring-loaded shocks to cushion stress on the casters, and tweaked a few other features to handle the abuse.

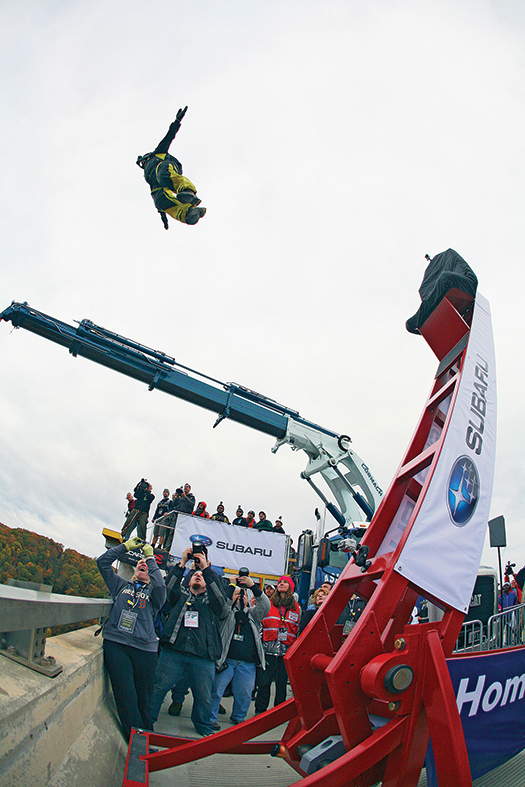

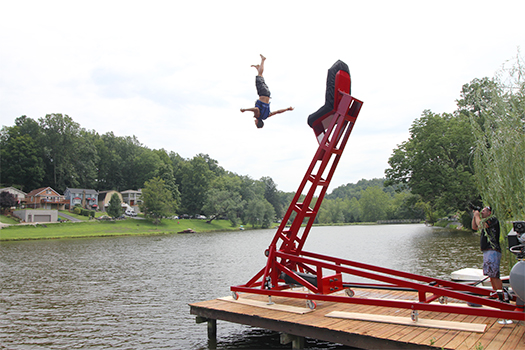

Last summer, Bell towed the catapult to a local lake to try it out with some friends. He sat in the chair as a buddy threw open a ball valve, retracting a piston with compressed air. The arm sprang up within a second, hurling him high above the lake. "This smooth but sudden sensation launches you upward, and then, all of a sudden, you say, 'Hey, I'm not in the chair anymore,' " he says. "I came out of the water hootin' and hollerin' like a teenager." Bell says the catapult's official debut at Bridge Day later that year was just as big a hit among BASE jumpers. "It's something I'll remember for the rest of my life," he says.
