You Built What?!: A Fire-Breathing, Jet-Powered Dragon

A 50,000-volt stun gun and liquid propane canister lets the flames fly

By Gregory Mone Posted 08.28.2012 at 9:58 am 12 Comments

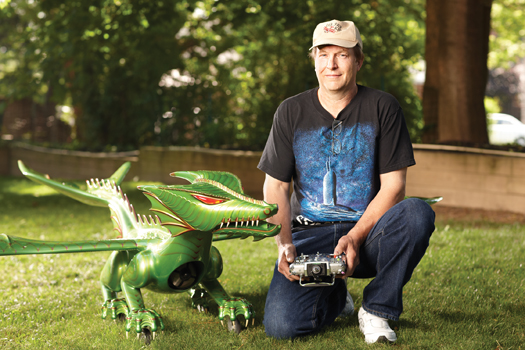

Green Flash The dragon can fly faster than 100mph, but builder Richard Hamel keeps it at a cruising speed closer to 70. Tom Cwenar

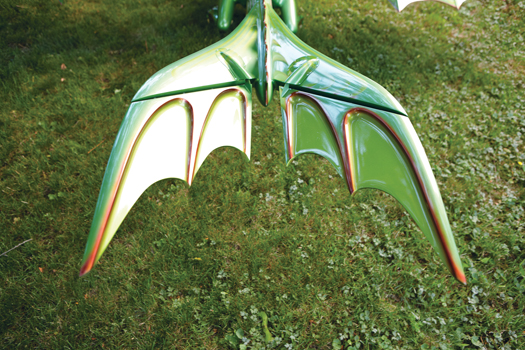

Richard Hamel was watching the 2010 animated film How to Train Your Dragon with his grandchildren when he noticed something odd about the tails of the flying beasts. Hamel, a longtime radio-control plane builder, realized that those appendages resembled an unconventional aircraft design feature known as an inverted V-tail. In lieu of a vertical stabilizer and horizontal rudder, some aircraft rely on two fins arranged in a V shape. “I thought, ‘That would actually work,’” he recalls, "and I started wondering if I could make a dragon fly.”

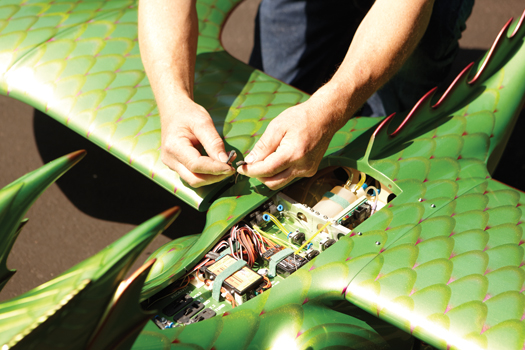

Hamel, a Pittsburgh-area plumbing, heating and air-conditioning contractor, has built all types of R/C aircraft but says he prefers working with jet turbines because of their reliability and the sound they make. He bought a JetCat P80 turbine with 22 pounds of thrust and then designed the creature from the inside out. He estimated that a 2.25-liter fuel tank would be enough for a few good flights and added up the weight of the other components he knew he would need—electronics, batteries and custom exhaust pipe.

Once he had determined that the weight would be about 33 pounds, Hamel was able to figure out that he would need 9-foot-wide wings. He used an off-the-shelf airfoil design template for the wings and built a fiberglass prototype that reached over 100 mph in a test flight. But that was too fast—he wanted people to see it when it banked—so he chose a new wing design that slowed it down a bit. The test flight also revealed that the dragon turned too slowly. Hamel had heard that flying dinosaurs used their heads to turn, so he designed a new skull. Now when the dragon’s V-tail rudder initiates a turn, its head swings around as well.

Hot Seconds: For safety reasons, Hamel activates the dragon’s flame breath only in quick bursts. Tom Cwenar

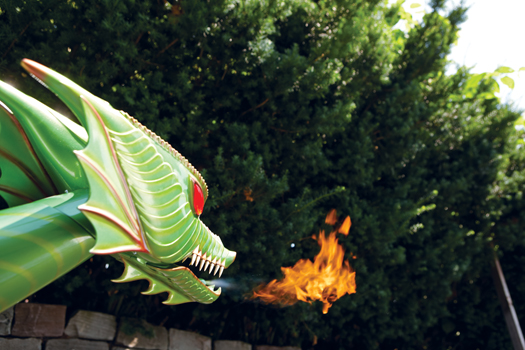

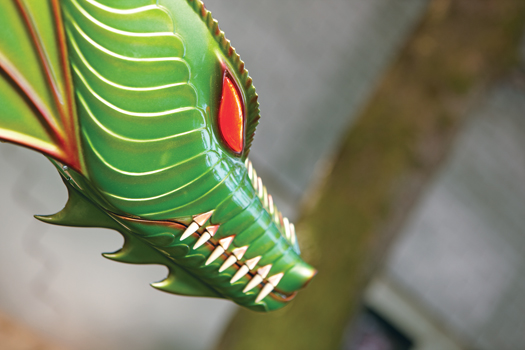

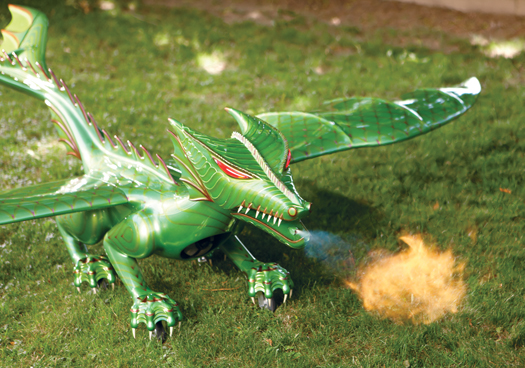

Hamel wanted his dragon to be fearsome too. He spent several months designing and laying on the scales, molding the teeth out of urethane, and designing eyes backlit with red LEDs. Of course, without fire a dragon is just a flying lizard, so he added the circuit from a 50,000-volt stun gun he found in his basement at the edge of the beast’s jaw, set a nozzle into the back of its mouth, and hooked that to a canister of liquid propane. When the nozzle sprays the propane through the activated circuit, a three-foot blast of red and blue flames shoots out.

Hamel plans to fly the dragon at air shows and parks, and although he designed it to be intimidating, he’s also concerned for its safety. “I’m worried somebody is going to take a shot at it.”

Up Close: Tom Cwenar

See how Hamel's dragon works (and see it in action) on the next page.
